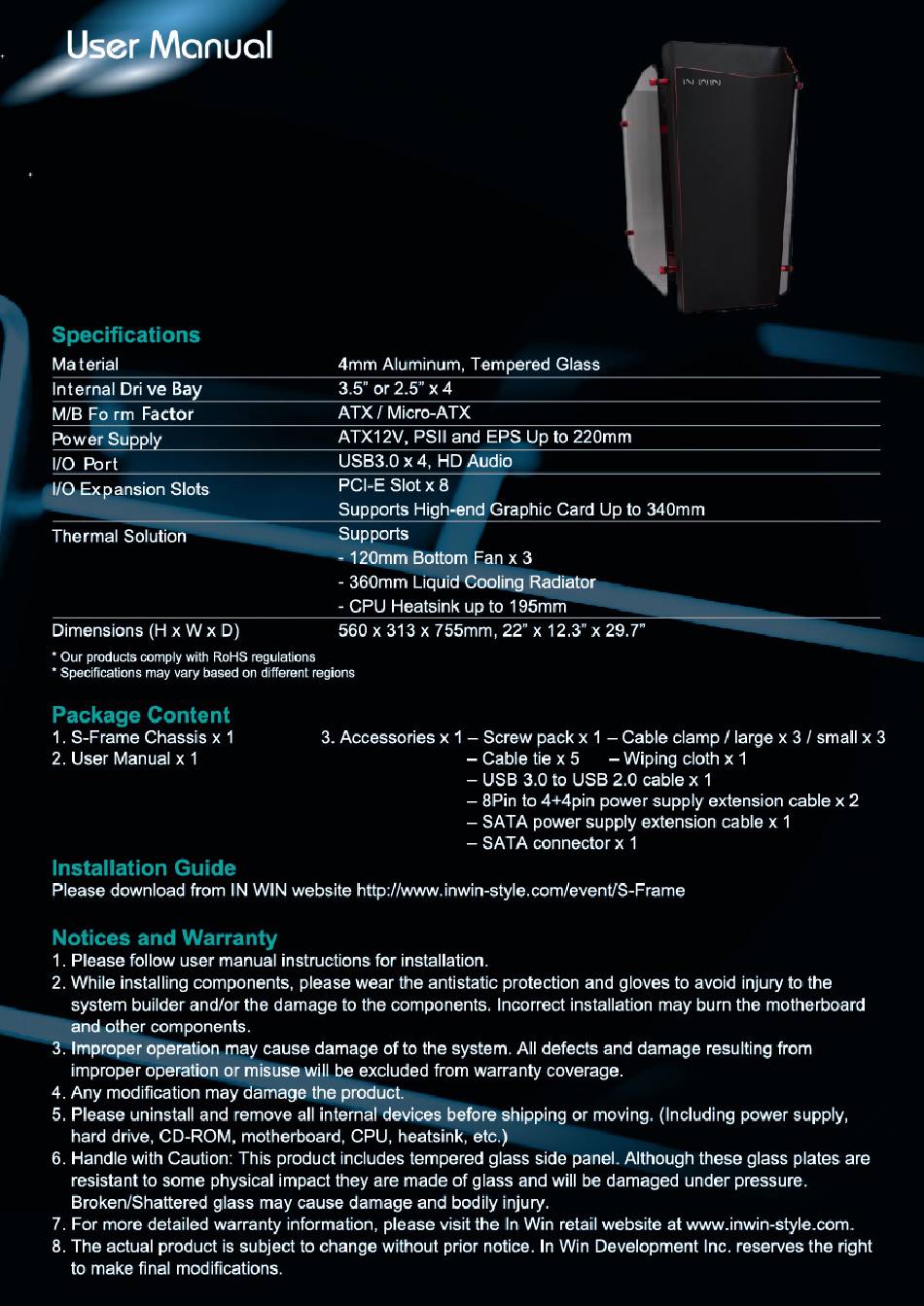

InWin S-Frame Manuel De L'utilisateur page 11

er Manual
Specifications
Ma terial
Internal Drive Bay
MIB Fo rm Factor
Power Supply
1/0 Port
flIO Expansion Slots
Thermal Solution
Dimensions (H x W x D)
• Our products comply with RoHS regulations
• Specifications may vary based on different regions
Package Content
I. S-Frame Chassis x I
2. User Manual x I
Installation Guide
Please download from IN WIN website http://www.inwin-style.com/event/S-Frame
Notices and Warranty
I. Please follow user manual
2. While installing components, please wear the antistatic protection and gloves to avoid injury to the
system builder and/or the damage to the components. Incorrect installation may burn the motherboard
nd other components.
3. Improper operation may cause damage of to the system. All defects and damage resulting from
improper operation or misuse will be excluded from warranty coverage.
4. Any modification may damage the prod
5. Please uninstall and remove all internal devices before shipping or moving. (Including power supply,
hard drive, CD-ROM, motherboard, CPU, heatsink, etc.)
6. Handle with Caution: This product includes tempered glass side panel. Although these glass plates are
resistant to some physical impact they are made of glass and will be damaged under pressure.
Broken/Shattered glass may cause damage and bodily injury.
7. For more detailed warranty information, please visit the In Win retail website at www.inwin-style.com.
8. The actual product is subject to change without prior notice. In Win Development Inc. reserves the right
to make final modifications.
4mm Aluminum, Tempered Glass
3.5" or 2.5" x 4
ATX / Micro-ATX
ATX12V, PSII and EPS up to 220mm
USB3.O x 4, HD Audio
PCI-E Slotx8J
Supports High-end Graphic Card Up to 340mm
Supports
20mm Bottom
- 360mm Liquid Cooling Rådi
- CPU Heatsink up to 195mm
560 x 313 x 755mm, 22" x 12.3" x 29.7"
3. Accessories x I —Screw pack x I —Cable clamp / large x 3 / small x 3
instructions for installation.
Fan x 3
—Cable tie x 5 —Wiping cloth x I
- USB 3.0 to USB 2.0 cable
—8Pin to 4+4pin power supply extension cable x 2
—SATA power supply extension cable x I
— SATA connector x I
x 1
