Master Lock 4400 Instructions D'installation

Activation Code / Code d' activation /
Cådig o de activaciön
QUICK START - UNLOCK WITH MOBILE DEVICE
1. Removelock & instructions from package.
2. On mobile device, visit app store & download free Master Lock Vault eLocks app.
3. Follow promptsto log into, or create, a Master Lock Vaultaccount.
4. In Master Lock Vault elocks app,touch Add a Lock (+).
5. EnterACTIVATION CODE shown aboveto register lock & follow instructions to connect mobile device to lock.
6. Touch any button on lock keypad to wake up lock & prompt it to communicate with your mobile device.
Yourlock is now in TouchUnlock mode. Youcan recalibrate mephone-to-lock communication range in the app settings.
QUICK START - UNLOCK WITH LOCK KEYPAD
1 . Removelock & instructions from package.
2. EnterPRIMARYCODE aboveby pressingthe corresponding directionson lock keypad
Do not pull on the shackle when entering code.
3. When lock lights green, open within 5 seconds or it will relock.
BLUE
Locked, Communicating,
or KeypadEntry
Model 4400 Battery Instructions
HOW TO REPLACE BATTERY
I. Lock will light yellow to indicate a low battery.
2. Unlock & open the lock.
3. Pull out battery drawer & remove old battery.
4. Install a new CR2450 battery with positive (+) side facing
the back of the lock.
5. Close battery drawer.
HOW TO UNLOCK WITH EXTERNAL
I . If battery dies in locked position, pull battery drawer out part
way to exposejump contactpoint.
Donot force thedraweropenanyfurther.
2. Hold a new CR2450 battery in the slot with positive (+)
side of batteryfacing the front of the lock.
3. Whileholdingthe batteryin place,with authorizedmobile
device within range of lock, press any keypad button on the
lock(if inTouchUnlockmode).If lock doesnot unlock,enter
PrimaryCodeon lockkeypad.
4. When unlocked, pull out battery drawer & install a new
CR2450battery.
Model 4401 Battery Instructions
HOW TO REPLACE BATTERY
1. Lock will light yellow to indicate a low battery.
2. Unlock & open the lock.
3 Remove bottom cover.
4. Usea coin to turn battery door slot 90 degrees counter
clockwise (A).Open battery door & remove old battery.
5. Install a new CR2 battery with positive (+) side facing right.
6. Close battery door, turn slot back 90 degrees clockwise
& replace bottom cover.
How TO UNLOCK WITH EXTERNAL
I. If the battery dies in locked position, remove bottom cover.
2. Hold a 9V battery to jump contacts on bottom of lock
3. While holding the battery in place, with authorized mobile
device within range of lock, press any keypad button on the
lock (if in TouchUnlock mode). If lock does not unlock,enter
Primary Code on lock keypad.
4. When unlocked, open battery door & install a new CR2 battery.
Notice: T hispadlockandits operatingsoftwareare subjectto U.S. E xm:nt Administration Regulation contros. Thepadlockissubjectto ECCN 5A992andthe
downloadable appis subjectto ECCN 5D992asmassmarketsoftware Exporting this padlockand/orits softwarecontraryto US lawis prohibited.
Notice: This device complies with Industry Canada licence-exempt RSSstandard(s). Operation is subject to the 101owing two conditions: (1) this device may
not cause interference, and (2) this device must accept any interference, including interlerence that may cause undesired operation of the device.
Mastß$k

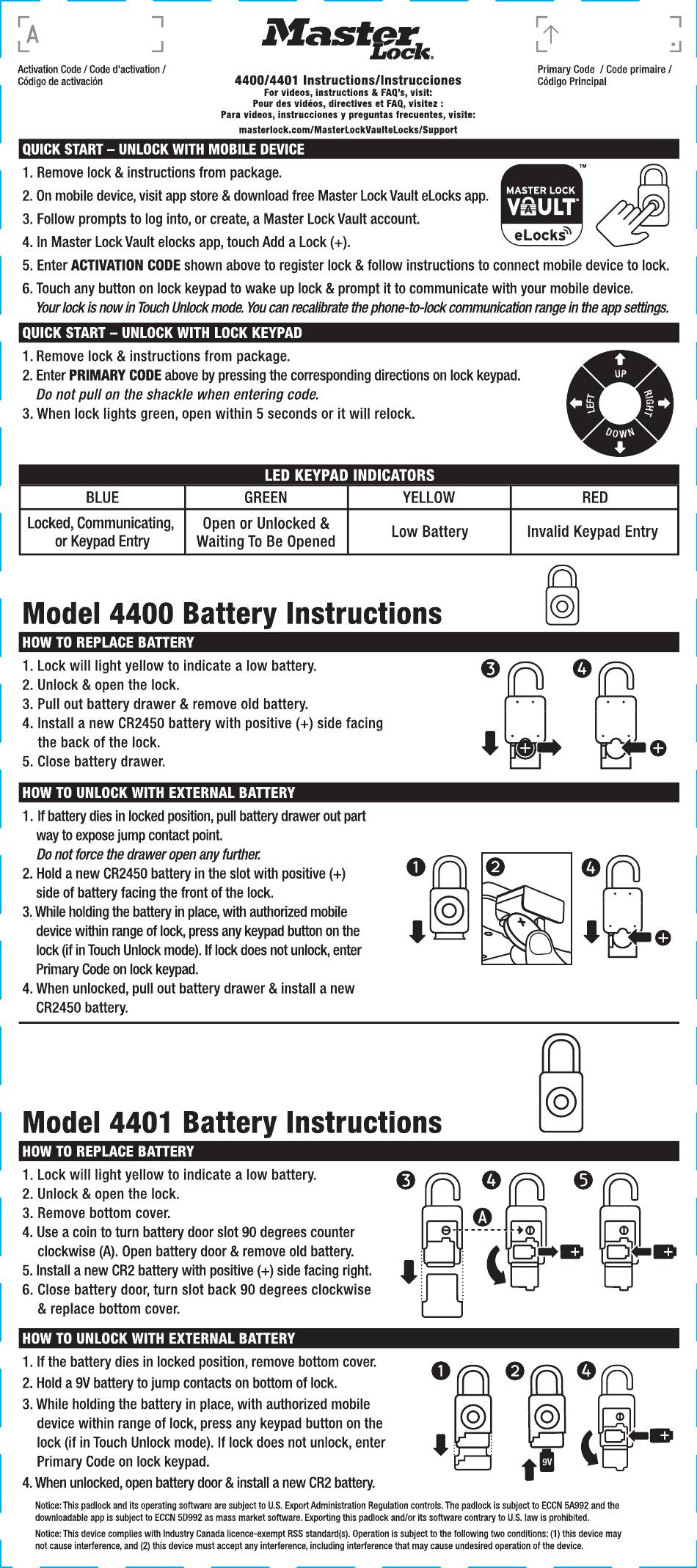

4400/4401 Instructions/lnstrucciones
For videos, instructions
pour des Vidéos, directives et FAQ,Visitez :
Para videos, instrucciones y preguntas frecuentes, visite:
masterlock.com/MasterLockVauIteLocks/Support
LED KEYPAD
GREEN
Open or Unlocked &
Waiting To Be Opened
BATTERY
BATTERY
& FAQ's, visit:
INDICATORS
YELLOW
Low Battery
o
O
O
o O
o
0
Primary Code / Code primaire /
C6digo Principal
MASTER LOCK
vat.JLT
eLocks•
UP
RED
Invalid Keypad Entry
o
O
O
9
