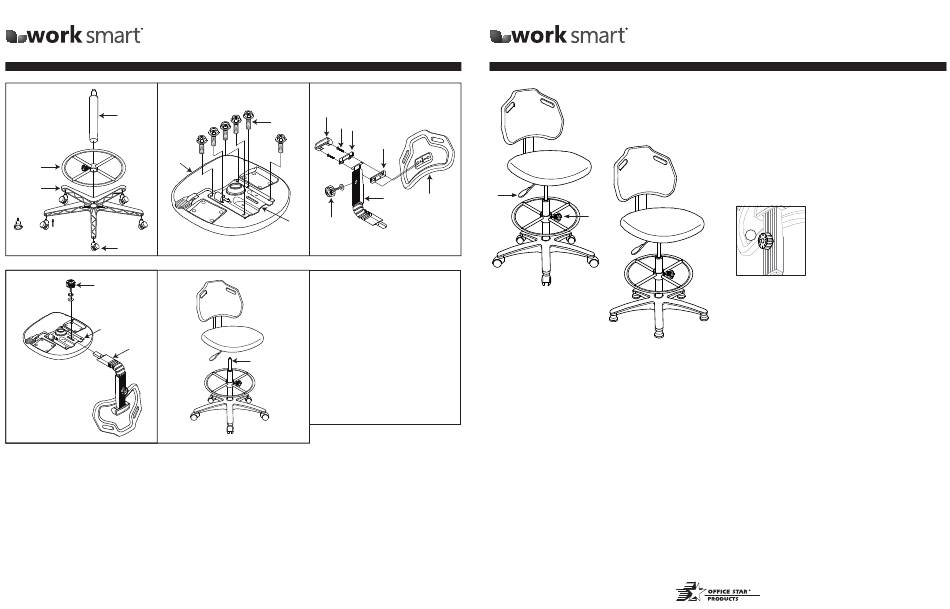

Work Smart KH81375MX Instructions De Montage

ÉTAPE 1 ÉTAPE 2
3
6
4
1
ou
2
ÉTAPE 4 ÉTAPE 5
14
5
15
Enlever toutes les pièces du carton, les organiser selon les numéros de pièce
indiqués sur la liste et vérifier que les quantités des pièces reçues sont correctes.
ÉTAPE 1 Insérer cinq roulettes (2) dans la base (1), les pousser très fort jusqu'à ce que vous entendiez ou sentiez la roulette (2) s'enclencher.
Faites glisser le vérin pneumatique (3) à travers le repose-pieds (4) et dans la base (1).
ÉTAPE 2 Fixer la plaque du siège (5) au coussin du siège (6) avec la flèche dirigée vers l'avant du fauteuil à l'aide de les vis de plaque
du siège (11). SERREZ COMPLÈTEMENT TOUTES LES VIS À L'AIDE DE LA CLÉ ALLEN (16).
ÉTAPE 3 Fixer le support du dossier (15) au dossier (7) avec support en plastique (10), plaque d'acier (9) et les vis du dossier (12).
SERREZ COMPLÈTEMENT TOUTES LES VIS À L'AIDE DE LA CLÉ ALLEN (16). Fixez le couvercle en plastique (8) au dossier (7).
Vissez le bouton de réglage du dossier (13) dans le support du dossier (15). SERREZ COMPLÈTEMENT LE BOUTON.
ÉTAPE 4 Fixez le support du dossier (5) à l'arrière de la plaque du siège (5) à l'aide du bouton avec rondelles (14).
SERREZ COMPLÈTEMENT LE BOUTON.
ÉTAPE 5 Placer le siège assemblé sur le dessus du vérin pneumatique (3) et pousser vers le bas.
ATTENTION: AVANT D'UTILISER LE FAUTEUIL, S'ASSURER D'AVOIR SERRÉ COMPLÈTEMENT TOUTES LES VIS.
KH81375MX / KH81310TX
TABOURET DE DESSINATEUR
INSTRUCTIONS DE MONTAGE
ÉTAPE 3
8
11
12 9
10
15
5 13
PIÈCE
1. Base . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Roulettes (ou patins de sol) . . . . . . . . . . .5
3. Vérin pneumatique . . . . . . . . . . . . . . . .11
4. Repose-pied . . . . . . . . . . . . . . . . . . . . . .1
5. Plaque du siège . . . . . . . . . . . . . . . . . . .1
6. Coussin du siège . . . . . . . . . . . . . . . . . .1
7. Dossier. . . . . . . . . . . . . . . . . . . . . . . . . .1
8. Couvercle en plastique . . . . . . . . . . . . . .1
9. Plaque d'acier . . . . . . . . . . . . . . . . . . . .1
3
10. Support en plastique . . . . . . . . . . . . . . .1
11. Vis de plaque du siège . . . . . . . . . . . . .6
12. Vis du dossier . . . . . . . . . . . . . . . . . . . .2
13. Bouton de réglage du dossier . . . . . . . .1
14. Bouton avec rondelles . . . . . . . . . . . . . .1
15. Support du dossier . . . . . . . . . . . . . . . .1
16. Clé Allen (non montré). . . . . . . . . . . . . .1
© Office Star Products juillet, 2024
1
7
2
QTÉ
WORK SMART LIMITED WARRANTY
Work Smart chairs are warranted from the date of purchase against failure due to material and workmanship as follows:
• 15 Years on all non-moving metal parts.
• 5 Years on component parts including Control mechanisms, pneumatic cylinders, wood, plastic parts, base and casters.
• 3 Years on upholstery fabric and foam against wear and deterioration.
• Leather is not warranted against routine scratching and scuffing, as leather is subject to minor blemishes in use.
To make a warranty claim, contact Parts Department. Provide model number, proof of purchase, description of the problem and obtain return authorization. At it's
option Office Star Products will:
(a) Supply compatible components of current manufacture.
(b) Repair the customer's component. The customer must prepay freight on any components returned to the factory. Return freight on
components still in warranty will be paid by Office Star Products.
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 275 lbs. or less.
The BC9601 is for persons weighing 300 lbs. or less. The BC9602 is for persons weighing 400 lbs. or less. The BC9603 is for persons weighing 500 lbs. or less.
EX1098, EC1283C & ECH12801 are for persons weighing 350 lbs. or less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence,
alteration, accident, vandalism, rusting, acts of nature or any other event beyond the control of Office Star Products. The warranty does not cover cosmetic dam-
age that may result from normal use. Liability for incidental or consequential damages is excluded. The user assumes all risk of injury resulting from use of this
product. When usage is more than 40 hours per week, a two year warranty on all parts applies. Fabric is warranted for one year. This warranty gives you specific
legal rights, and you may also have other rights which vary from state to state. All Work Smart chairs are built to meet or exceed ANSI BIFMA standards.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts are damaged or missing. Our
Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail parts.department@officestar.net, by Fax 1-909-930-5629, or
toll free parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 3:30 p.m. Pacific Time.
KH81375MX / KH81310TX
DRAFTING CHAIR
OPERATING INSTRUCTIONS
FEATURES
• PNEUMATIC SEAT HEIGHT ADJUSTMENT
To raise seat remove pressure from seat and pull lever (1) up.To
lower seat height sit on chair and pull lever (1) up.
NOTE: It is normal for chair to slightly lower under body weight.
• FOOTRING HEIGHT ADJUSTMENT
Loosen knob (2) on footring to raise or lower the height of footring, tighten
knob (2) once desired height is reached. TIGHTEN KNOB COMPLETELY!
• BACK HEIGHT ADJUSTMENT
Loosen knob (3) on Backrest post to raise or lower the height of
Backrest, tighten knob (3) once desired height is reached.
TIGHTEN KNOB COMPLETELY!
3
WARNING
1. Use this product only one person at a time.
2. Do not use this chair unless all bolts screws and knobs are
securely tightened.
3. Check that all bolts screws and knobs are tight every three months or
as needed.
4. Dispose of packing material properly. Do not use plastic cover as head
covering. It may cause suffocation.
5. Do not use chair as a stepladder.
6. Use this chair for its intended purpose only.
7. Use mild detergent only for cleaning.
