ENGLISH – USER MANUAL
IPX7 Wireless speaker 10W -- - HDSP01
1 . Characteristics
1 .1 . Technical specifications
Playtime: Up to 10 hours
Battery: 2,000 mAh
Power: 10 W
Audio frequency range: 20 Hz - 20 kHz
Protection rating: IPX7 (water and sweat proof)
Operation range: 10 meters
Wireless frequency range: 2.402-2.480 GHz
Maximum transmitted power in frequency ranges: +4.13dbm
Technology: True Wireless Stereo
Memory: Micro SD slot
Impedance: 40 Ω
Sensitivity: 90 dB
Charging time: 3 hours
Dimensions: Ø8.5 x 10 cm
Weight: 460 g
Material: ABS
1 .2. In the box
1 x Speaker
1 x Strap
1 x USB-A to USB-C cable (50 cm)
1 x User manual

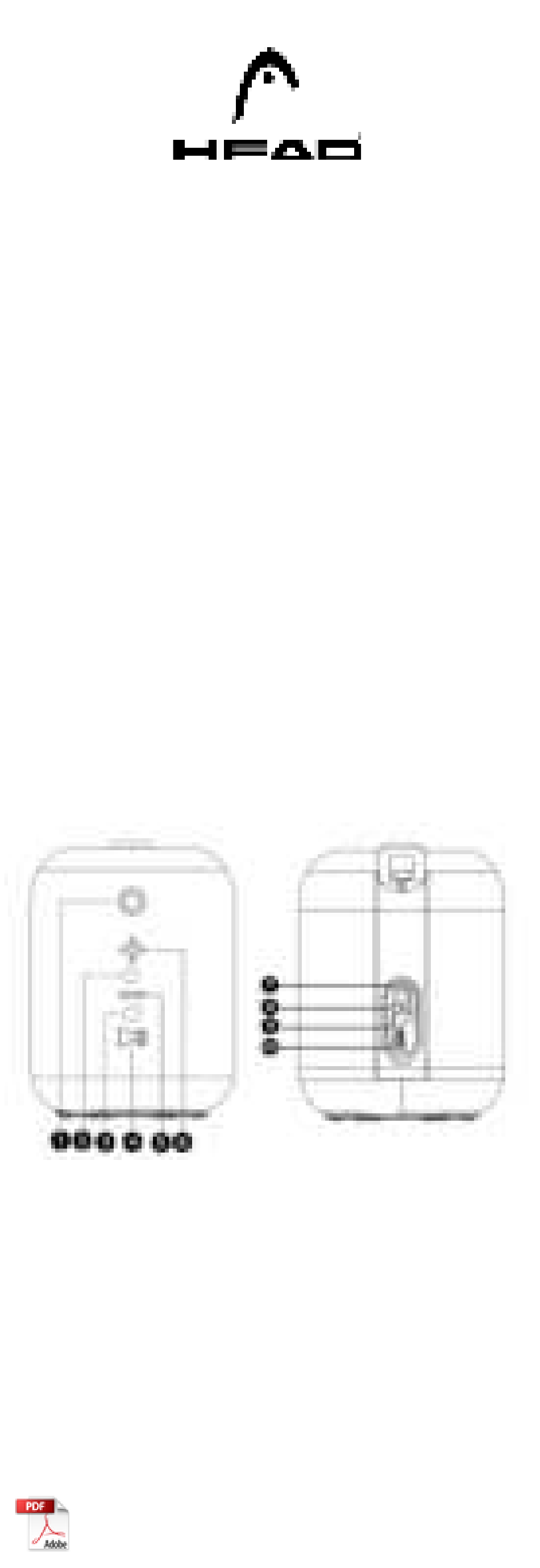

1 .3. Product details
1- Power button/TWS pair
2- White LED function indicator
3- Microphone
4- Multifunctional button
5- Volume -- - / Previous track
6- Volume + / Next track
7- Micro-SD port
1 .4. Speaker LED indicators
The speaker's LED indicators informs about the connection and the
battery state:
Charging
speaker
Charged
speaker
Pairing mode
8- AUX-IN port
9- Red LED charge indicator
10-
(5V/1000mA)
When charging the speaker, the red
LED charge indicator will be steady red.
It means that the speaker is charging
but is not fully charged.
The red LED charge indicator will turn
off when fully charged.
After turning on the speaker, it will
DC 5V charge in
