INTRODUCTION
The K41-0117-000 Touchscreen Display and Door Kit is a replacement
for the Connected Access Portal - High Capacity (Models CAPXL and
CAPXLV).
K41-0117-000 Carton Inventory (Figure A): Fully assembled CAPXL door
with LCD display and touchscreen assembly, display gasket, camera
window, nut 6-32 (9), cable tie (8), installation instructions.
NOTE: New K001D8439 Power/Internet board will ship in separate box.
INSTALLATION INSTRUCTIONS
Disconnect and remove control board
1. Disconnect power to the CAPXL. Remove the PWR INPUT terminal
block from the Power/Internet Board (Figure B).
2. Disconnect the USB, Ethernet, computer power, and data cables from
the control board (Figure C).
3. Cut the cable tie holding the data cable to the control board. Do NOT
cut the data cable.
4. Remove the 4 locknuts securing the control board to the CAPXL door.
5. Carefully pull the control board away from the faceplate. Disconnect
the audio cable from the control board. Set aside the control board.
Unplug connectors
6. Cut the 2 cable ties securing the harness to the left side of the display
bracket. Do NOT cut the cables.
7. Remove the 2 mounting screws from the light sensor board and allow
the board to dangle by the cables.
8. Remove the 2 locknuts from the postal lock lever-switch. Remove the
postal lock lever-switch. Remove the plastic spacers.
9. Disconnect the Touch Panel connector from the Power/Internet board
(Figure B).
10. Cut the connector off of the Touch Panel harness and slide the
remaining wire entirely through the braided sleeve.
11. Unplug the backlight connector (Red/White wire) from the Power/
Internet board and pull the wire entirely through the braided sleeve.
Discard the backlight connector.
Remove hardware
12. Remove the 2 screws securing the microphone to the CAPXL door.
13. Remove the 4 nuts securing the speaker to the CAPXL door, carefully
pull speaker from door and set inside enclosure.
14. Remove 1 wingnut securing the postal lock cover or remove 4 nuts
holding postal lock in place (if equipped). Remove postal lock/cover.
15. Remove 4 locknuts securing card reader bracket in place, remove
card reader (if equipped). Carefully remove reader bracket/cover.
16. Remove 1 wingnut securing camera bracket in place. Carefully
remove camera/bracket and set inside enclosure.
This manual downloaded from http://www.manualowl.com
TOUCHSCREEN DISPLAY AND DOOR KIT
To prevent possible SERIOUS INJURY or DEATH, disconnect
electric power to operator BEFORE installing.
ALL installations and electrical connections MUST be made by
a qualified individual.
WARNING: This product can expose you to chemicals including
lead, which are known to the State of California to cause cancer
or birth defects or other reproductive harm. For more information
go to www.P65Warnings.ca.gov.

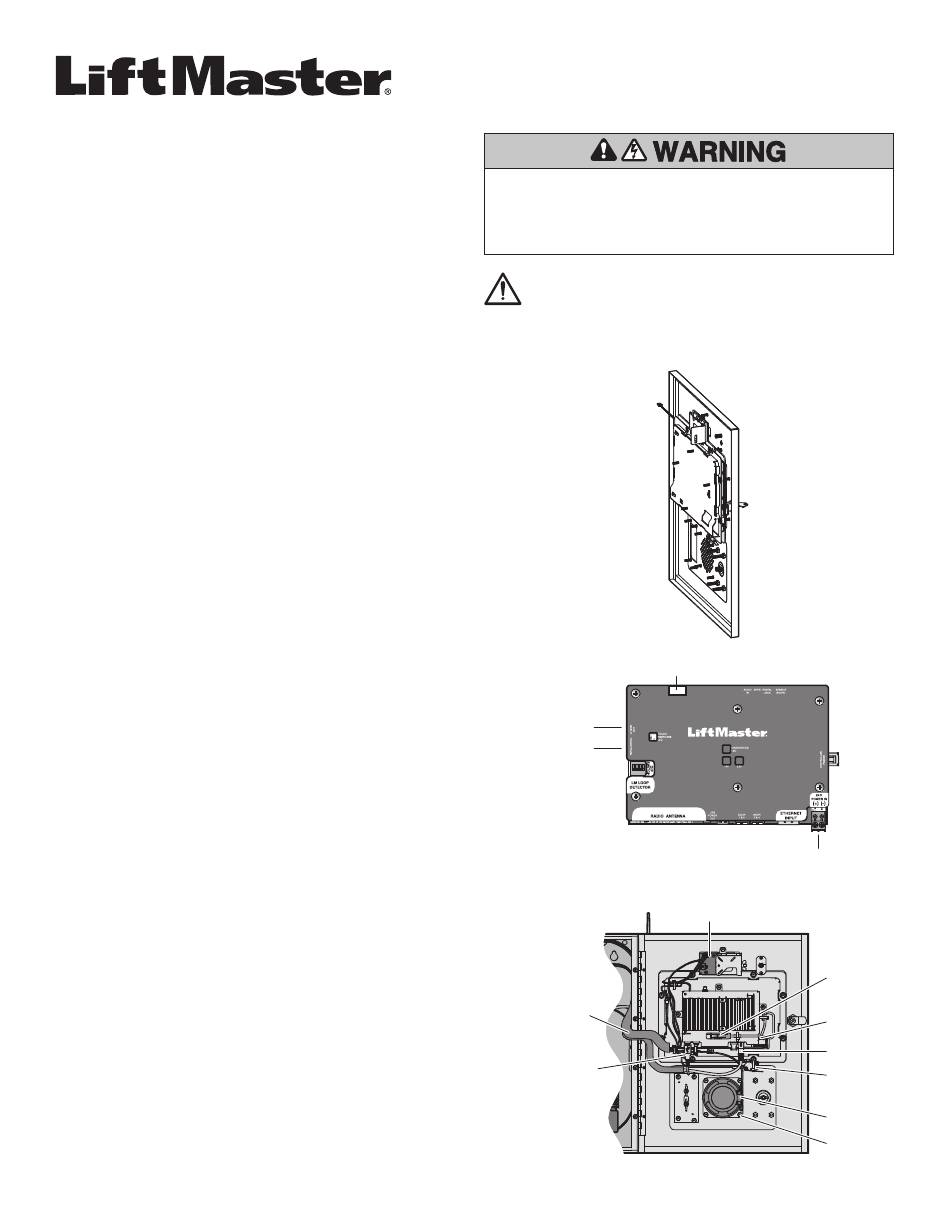

Figure A
CAPXL door with LCD display
and touchscreen assembly
Figure B OTS Backlit
Power/Internet Board
Backlight Power
connector location
Touch Panel
connector location
ON
Figure C
ON
Braided sleeve
USB
K41-0117-000
PWR INPUT terminal
block location
Light sensor board
Data
cables
Computer
power
Ethernet
Postal lock
Speaker
Nuts
