Viega IPS Instructions

Product Instructions

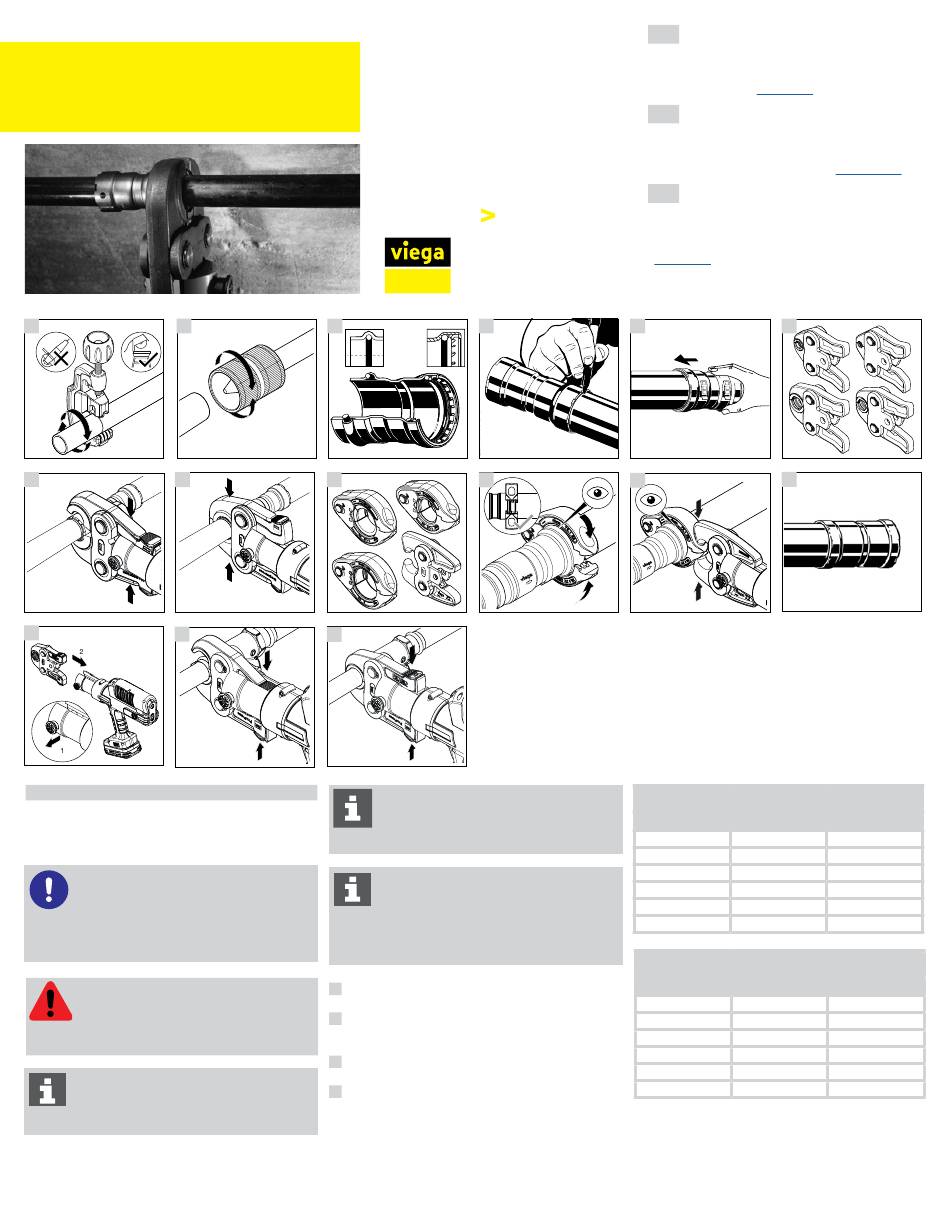

Viega Stainless IPS to CTS
Transition Coupling ½" to 2"
1 2
6b 6c
6 8a
8b
EN
Viega Stainless IPS to CTS
Transition Coupling ½"–2"
Viega products are designed to be
installed by licensed and trained plumbing
and mechanical professionals who are
familiar with Viega products and their installation.
Installation by non-professionals may void
Viega LLC's warranty.
DANGER!
Read and understand all instructions for
installing Viega fittings. Failure to follow all
instructions may result in extensive property damage,
serious injury, or death.
The Viega stainless IPS to CTS transition
coupling is for joining stainless steel pipe
only. It is not meant for joining dissimilar
metals, such as galvanized to copper pipe.
Viega LLC
585 Interlocken Blvd.
Broomfield, CO 80021
Phone (800) 976-9819
www.viega.us
3 4
7a 7b
8c
For the IPS side of the coupling (the larger
side), MegaPress jaws/rings must be
used for presses. For the CTS side of the
coupling, ProPress jaws must be used for presses.
The IPS side of the coupling must be used
with ASTM A312 pipe. The CTS side of
the coupling must be used with Propress
stainless tubing. The pipe/tube must be smooth;
free of indentations, pits, and deformations; and
free of dirt, debris, rust, scale, oil, and grease.
Cut the pipe square. Do not deform the pipe when
1
cutting.
2 Remove burr from inside and outside of pipe/
tube and prep to proper insertion depth using a
preparation tool or fine grit sandpaper.
3 Illustration demonstrates proper fit of the
components inside the press hub.
4
Mark proper insertion depth as indicated by
the following insertion depth charts. Improper
insertion depth may result in an improper seal. It
is recommended that the depth marking be visible
on the completed assembly.
Product Instructions
EN
Viega Stainless IPS to CTS
Transition Coupling ½"–2"
This document is subject to updates. For the most current Viega
technical literature, please visit www.viega.us.
Instrucciones del producto
ES
Acoplamiento de transición IPS a CTS
para acero inoxidable ½"–2" de Viega
Este documento está sujeto a actualizaciones. Para obtener la
documentación técnica más reciente de Viega, visite www.viega.us/es.
Instructions produit
FR
Manchon de transition Viega en acier
inoxydable IPS à CTS ½"–2"
Le présent document est soumis à des mises à jour. Pour consulter
les manuels techniques Viega les plus récents, se reporter au site
Web www.viega.ca.
PI-MP-PP 530720 0725 Stainless IPS to CTS Coupling ½ to 2 (EN ES FR)
5 6a
7d
7c
IPS Press Connection
Minimum Insertion Depth (d)
Pipe size (in) d (in)
½ 1 /
1
16
¾ 1 /
3
16
1 1⅜
1¼ 1 /
1 3
16
1½ 1⅞
2 2
CTS Press Connection
Minimum Insertion Depth
Tube size (in) d (in)
½ 3/ 4
¾ 7/8
1 7/8
1¼ 1
1½ 17/16
2 19/16
d (mm)
27
30
35
46
48
51
d (mm)
19
23
23
26
37
40
