2. Your customer has a blank electronic energy
meter (previous generation):
The meter and the wired TIC card can only
be connected by a wire via a remote energy
meter cable.
3. Your customer has a Ferraris electrome-
chanical meter (without TIC):
To obtain a TIC, you can create a wired con-
nection using a remote energy meter cable
between the TIC XEV304 (for single-phase
network) or XEV305 simulator (for three-phase
network) and the wired TIC card.
Refer to the XEV304 and XEV305 product
manual.

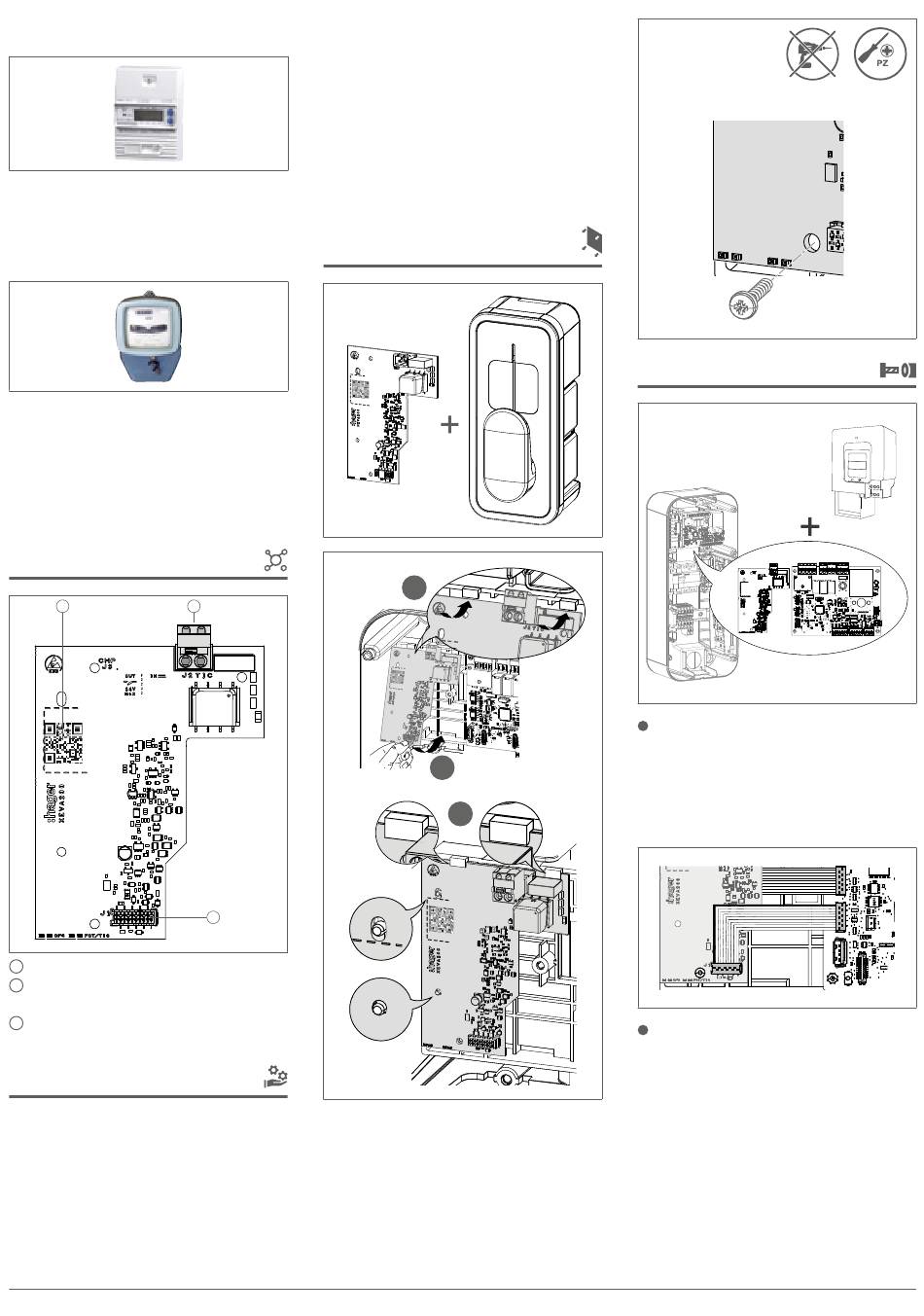

Description of the card
1 1
QR code for product identification
1
TIC input (new generation meter) and elec-
2
tronic meters with a TIC output
Power supply and connection terminal (via
3
the controller card)
Function
Typical scenario
− Integration into a charging station for an
XEV1Kxxx electric vehicle.
− Communication with the new generation
meter and electronic meters with a TIC
output via the wired connection.
05
Product compatibility
− Compatible with the XEV1Kxxx three-
phase or single-phase electric vehicle
charging station range.
− This wired TIC card does not require
setting:
1. with a previous generation wired TIC
card from French electronic energy
meters,
2. with a standard TIC from the new
generation French energy meter.
Installing the wired TIC card
1 2
1 3
A
B
C
HagerEnergy GmbH, Ursula-Flick-Straße 8, 49076 Osnabrück, Germany
1
Connecting the wired TIC card
Connecting the wired TIC card to the
1
controller:
Use the flat cable (2 x 10 pins) supplied
and connect the J1 connector of the
wired TIC card to the J2 connector of the
Controller card.
Connecting the wired TIC card to the
2
electronic meter:
If you use wired connectivity to transmit
information, the plug-in J2 quick connect
terminal of the wired TIC card connects
to the I1 and I2 terminals of the electronic
meters.
1
1
