WallDrain
Installation Guide
Generic Installation for WallDrain
Guide d'installation
Installation générale pour le drain WallDrain
Guía de instalación
Instalación genérica del WallDrain

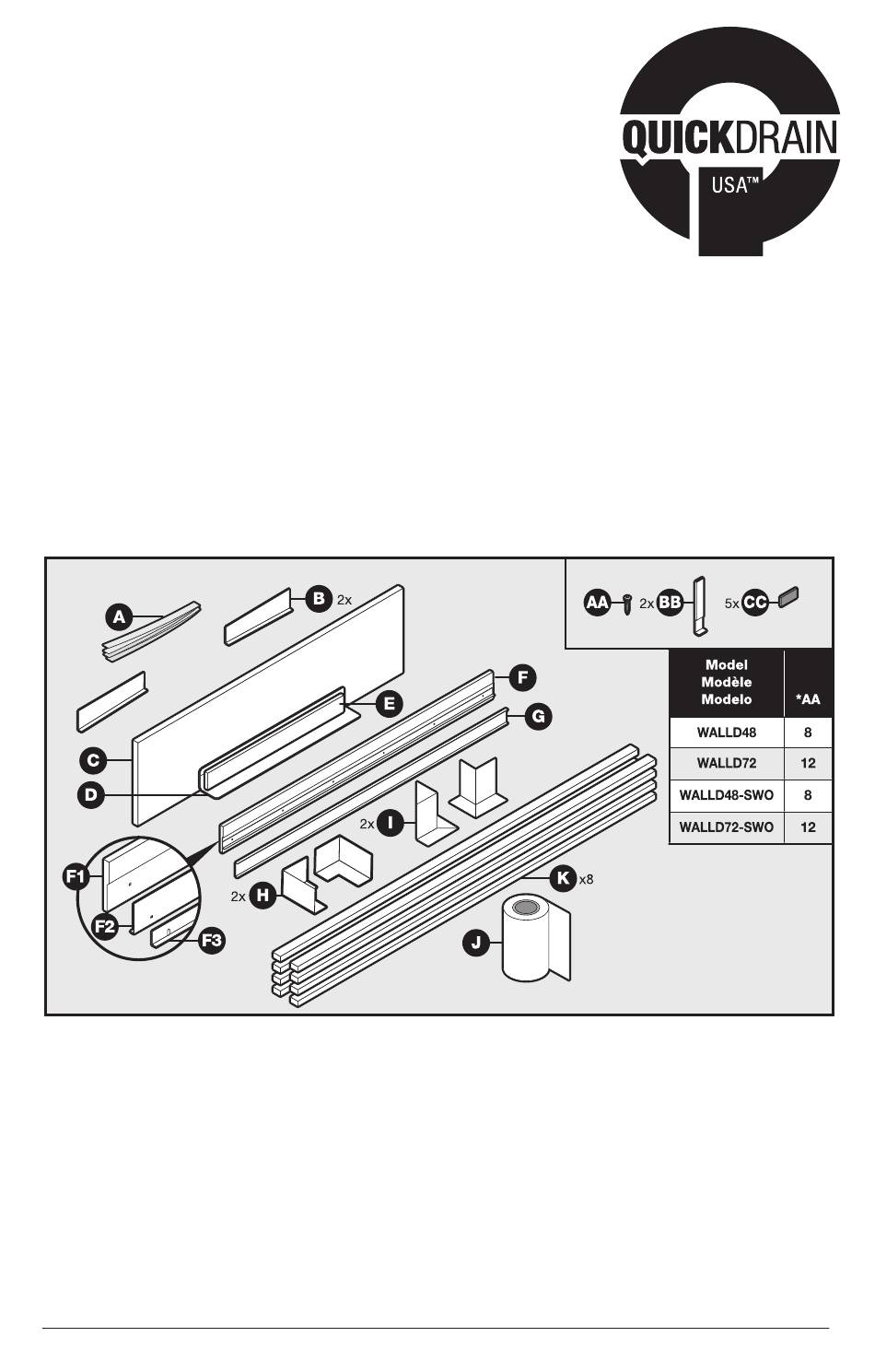

Parts, Hardware and Tools Needed
Pièces, matériel et outils exigés
Piezas, accesorios y herramientas necesarios
A
Transition Tape
B
Trough Extensions
C
Vertical Installation Panel
D
Drain Body
E
Foam Insert
F
Adjustment Panel (F1
Adjustment Panel Base,
F2 Magnet Cover, F3 Tile
Edging)
G
Tile-In Cover
H
Inside Corners
I
Outside Corners
J
Reinforcement Fabric
K
Furring Strips
AA Adjustment Panel Screws
BB Cover Standoffs
CC Cover Magnets
