GYS AIRFIX DRAW ALIGNER Manuel D'utilisation page 13

User manual
Translation of the original
instructions

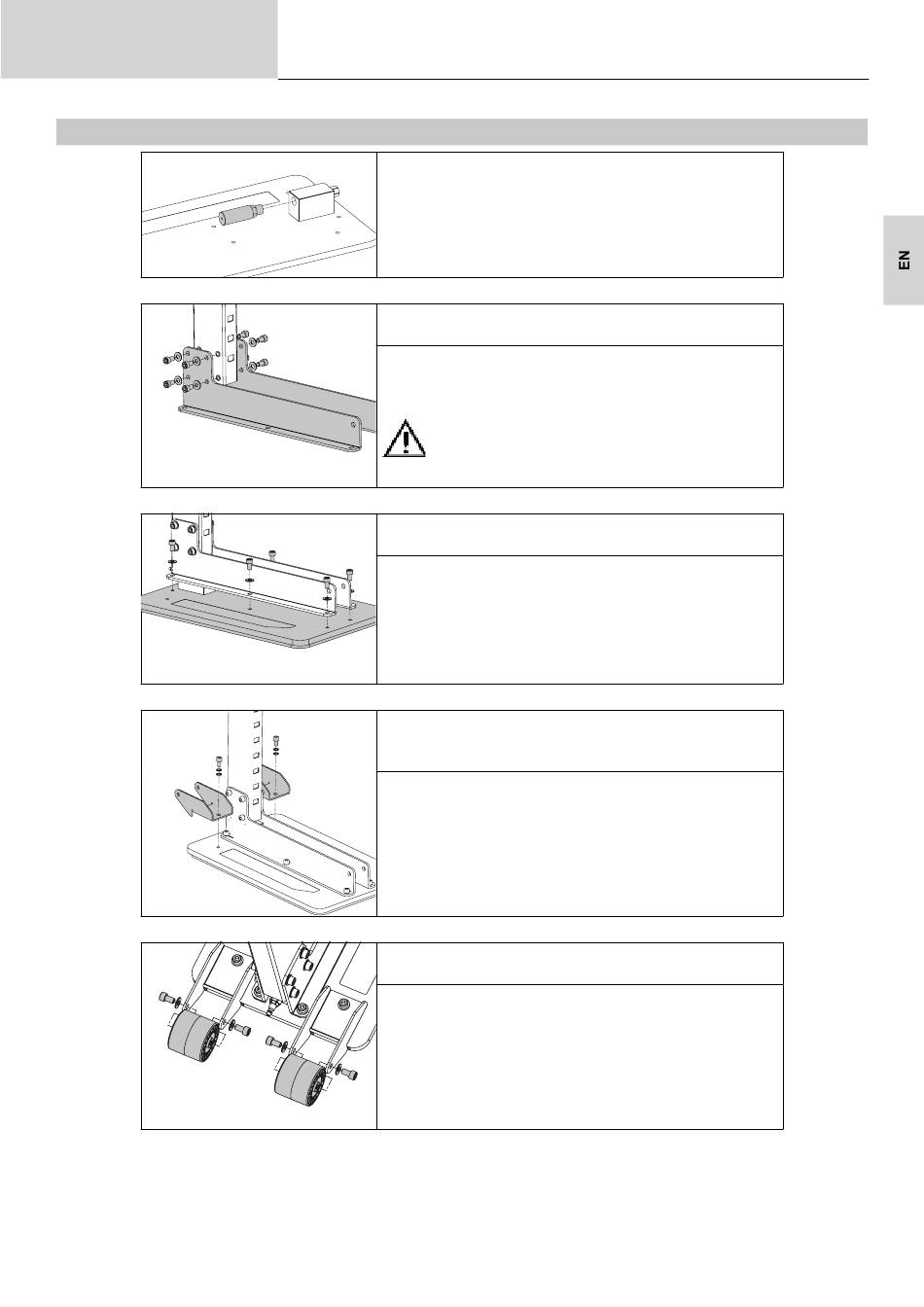

ASSEMBLY
Screw the silencer onto the Venturi block by hand
Screw the left and right brackets to the base of the co-
lumn using an H8 spanner.
Be careful to position the column with the
notches on the right side, see image.
Screw the column / brackets assembly to the plate using
an H8 spanner.
Screw the wheel supports to the plate using an H8
spanner.
Screw the wheels and their axles to the wheel brackets
using an H8 spanner.
AIRFIX DRAW ALIGNER
Screw M10x25: 8
Safety washer M10: 8
Screw M10x18: 6
Safety washer M10: 6
Screw M10x18 : 2
Flat washer M10 : 2
Safety washer M10: 2
Screw M10x18: 4
Safety washer M10: 4
13
