6101120300RP, 6101120500RP - Grill Assembly
Replacement Instructions
To replace the Grill Assembly:
1. Place the Convertible Electric Grill on its back.
2. Place one hand on the handle of the BBQ and
release the Drip Tray by pulling up on the release
tab (Fig. 1).
3. Remove the Junction Box Cover Plate by removing
the two (2) Phillips screws that hold it in place
(Fig. 2).
4. Remove all wire connectors.
5. Remove the two (2) # 3 Phillips screws and
washers that attach the grill to the main chassis.
There is one (1) screw on each side of the grill
(Fig. 2).
6. Turn BBQ so that it rests on extended legs and
remove the two (2) silver trim pieces on either side
of the grill. Each trim piece is held in place by two
(2) small Phillips screws (Fig. 3).
7. Lift the grill out of the BBQ.
8. Position replacement grill into BBQ and
reassemble in reverse order.

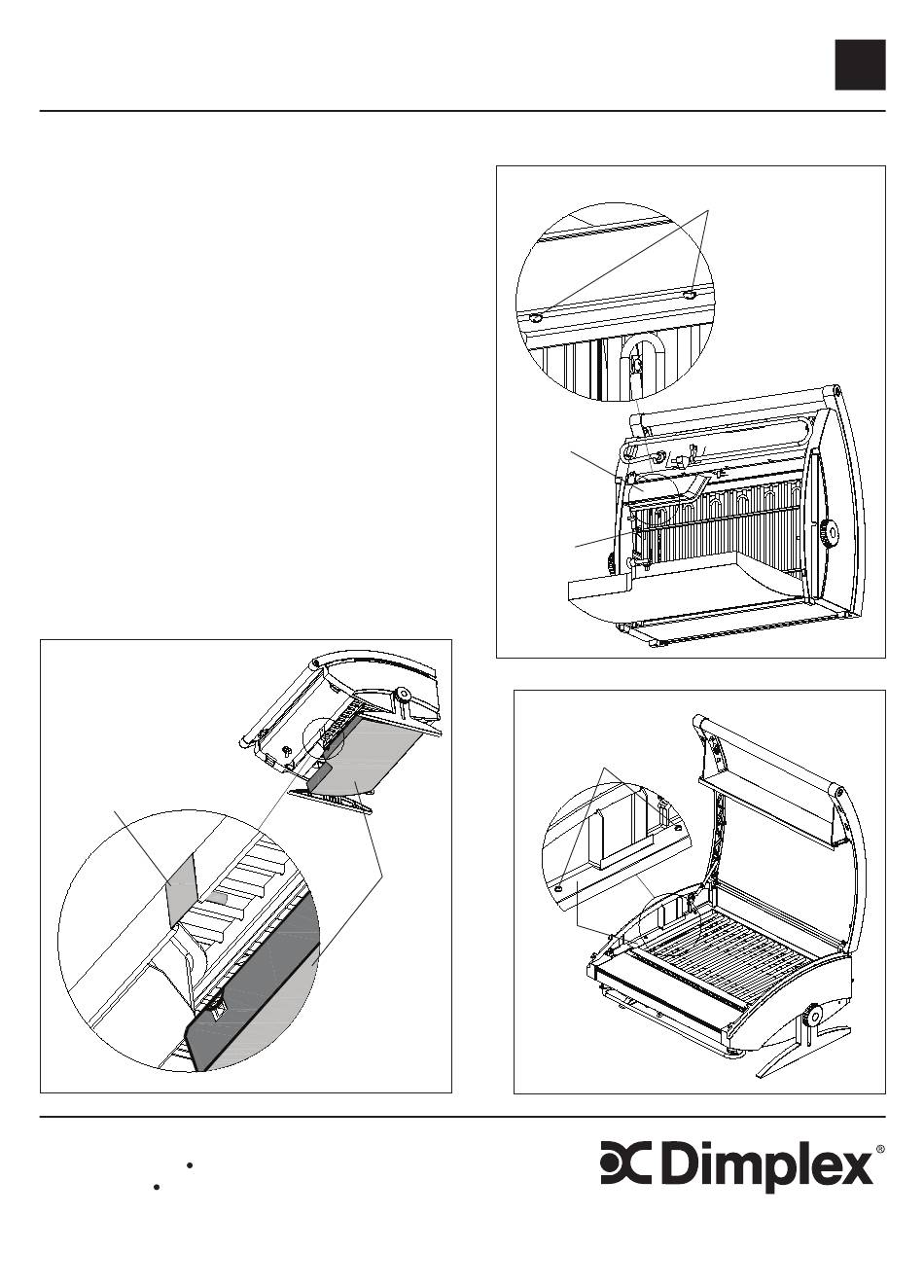

Fig. 1
Release tab
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve
the right to make changes without notice.
Fig. 2
Junction box
Grill
screws
Fig. 3
Drip
tray
Trim
piece
Cover plate
screws
Screws
© 2010 Dimplex North America Limited
EN
7209680100rev01
