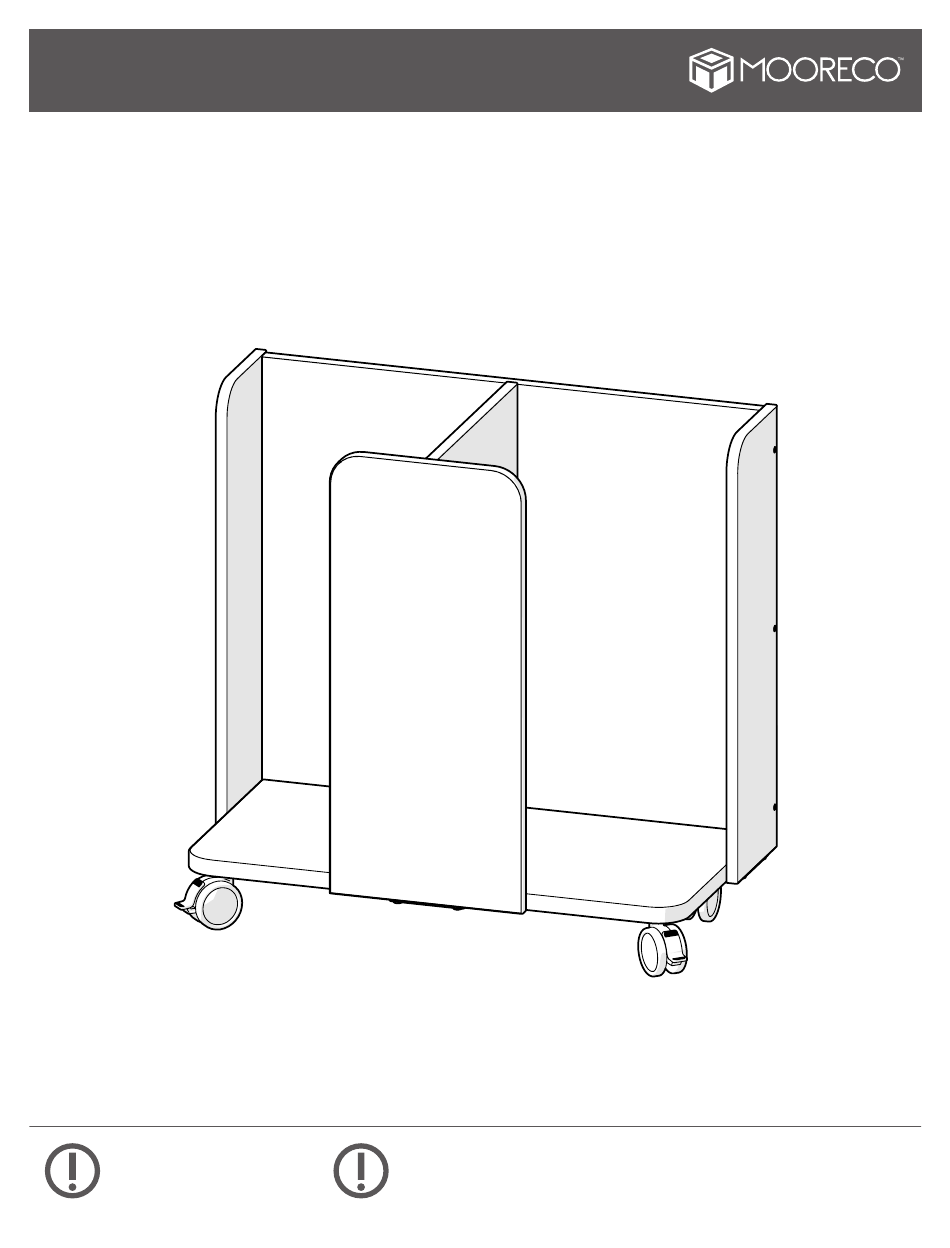

- Page 1 Dot Cart - Double Part Numbers: 20703, 20705 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 05/04/2021 1 of 6...
-
Page 2: Parts List
Parts List Hardware P1 - Back Panel A - PH 50mm B - SH M6x15mm P2 - Base Panel C - Barrel Nut P3 - Inside Panel D - Dowel P4 - Outer Panel E - Bracket P5 - Side Panel F - L Bracket G - Locking Caster H - Non-Locking Caster... -
Page 3: Avertissements
WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in... - Page 4 Attach Back Panel to Inside Panel with screws (A). STEP 1 Attach Locking and Non-Locking Casters to Base Panel with screws (B). STEP 2 UPDATED AS OF: 05/04/2021 4 of 6...
- Page 5 Attach Base Panel to Back and Inside Panels using screws (A) with dowels (D). STEP 3 Attach Outer Panel using two L Brackets (F) with screws (B) per side of Inside Panel. STEP 4 UPDATED AS OF: 05/04/2021 5 of 6...
- Page 6 Attach both Side Panels with screws (A). STEP 5 Secure all panels to base with Brackets (E) and screws (B). STEP 6 THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 05/04/2021 6 of 6...
