Flush Mount Installation
Please carefully follow the instructions below to properly install the microwave drawer flush to the
cabinet.

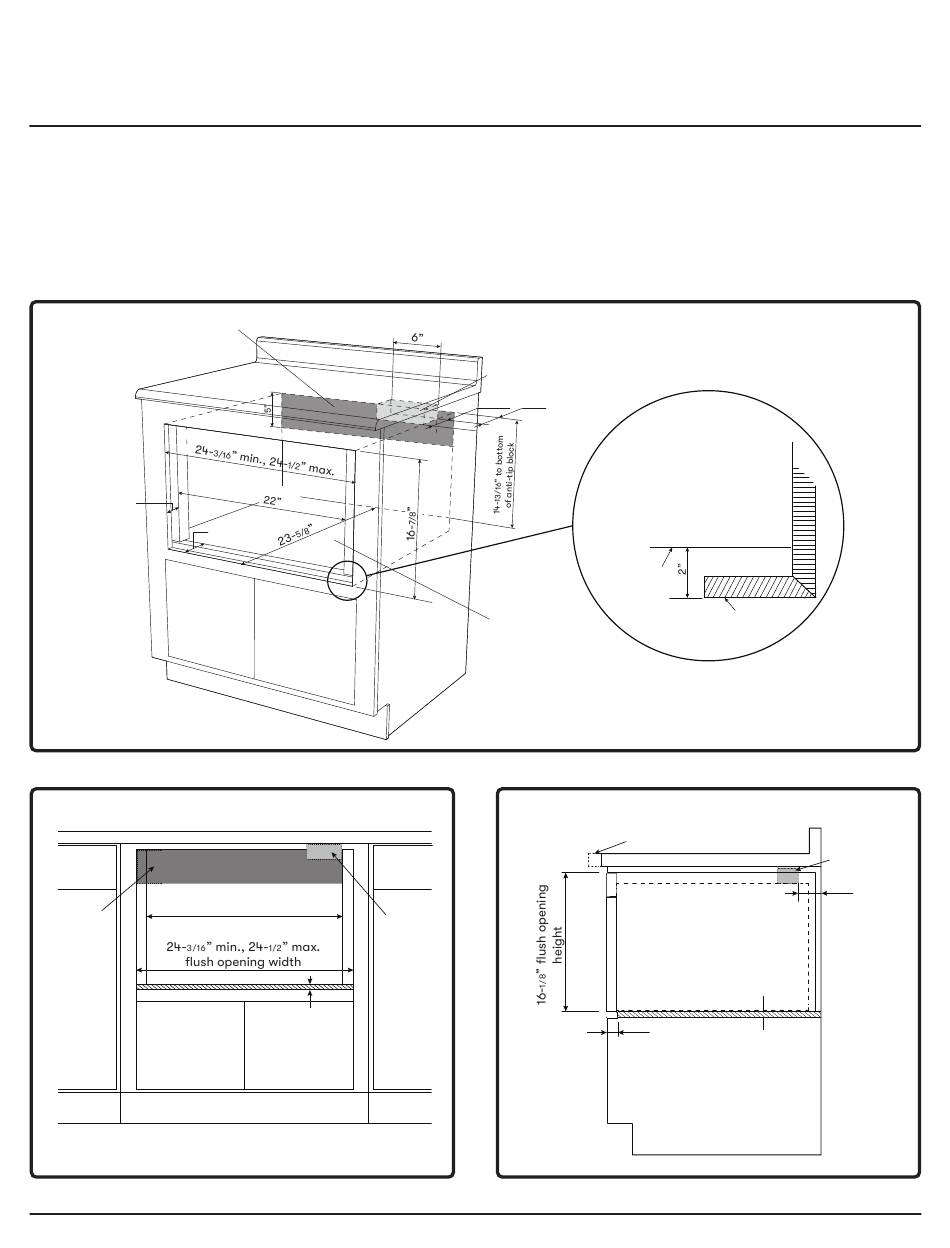

1. Prepare the cabinet opening as shown below.
Suggested electrical
outlet location
1-
"
1/2
mounting opening width
Preferred
electrical
outlet
location
YMD241AS Use, Care, and Installation Guide
2"
No Oven
22"
Anti-tip
block
3/4" shelf
Front View
Installation Instructions
Anti-tip
block
3-
"
4"
1/2
NOTE: The face of
the shelf must sit
1-7/8" back from the
face of the cabinet
Shelf Face
Must support
100lb minimum
Move open location downward for
extended countertops for better
viewing angle
Cabinet Face
Anti-tip
block
3/4" shelf
2"
Side View
4"
17
