SL - Subsea link
THIS MANUAL WAS WRITTEN IN THE ENGLISH LANGUAGE AND PROFESSIONALLY
TRANSLATED TO ALL OTHER LANGUAGES CONTAINED WITHIN THIS DOCUMENT.
PLEASE NOTE THAT STRAIGHTPOINT ACCEPT NO RESPONSIBILITY FOR ANY ERRORS OR
OMISSIONS.
ﺗﻌﻠﯾﻣﺎت اﻟﺗﺷﻐﯾل
v1.00
Part No:
SU6205
Publicité
Manuels Connexes pour Crosby Subsea Link SL Serie
Sommaire des Matières pour Crosby Subsea Link SL Serie

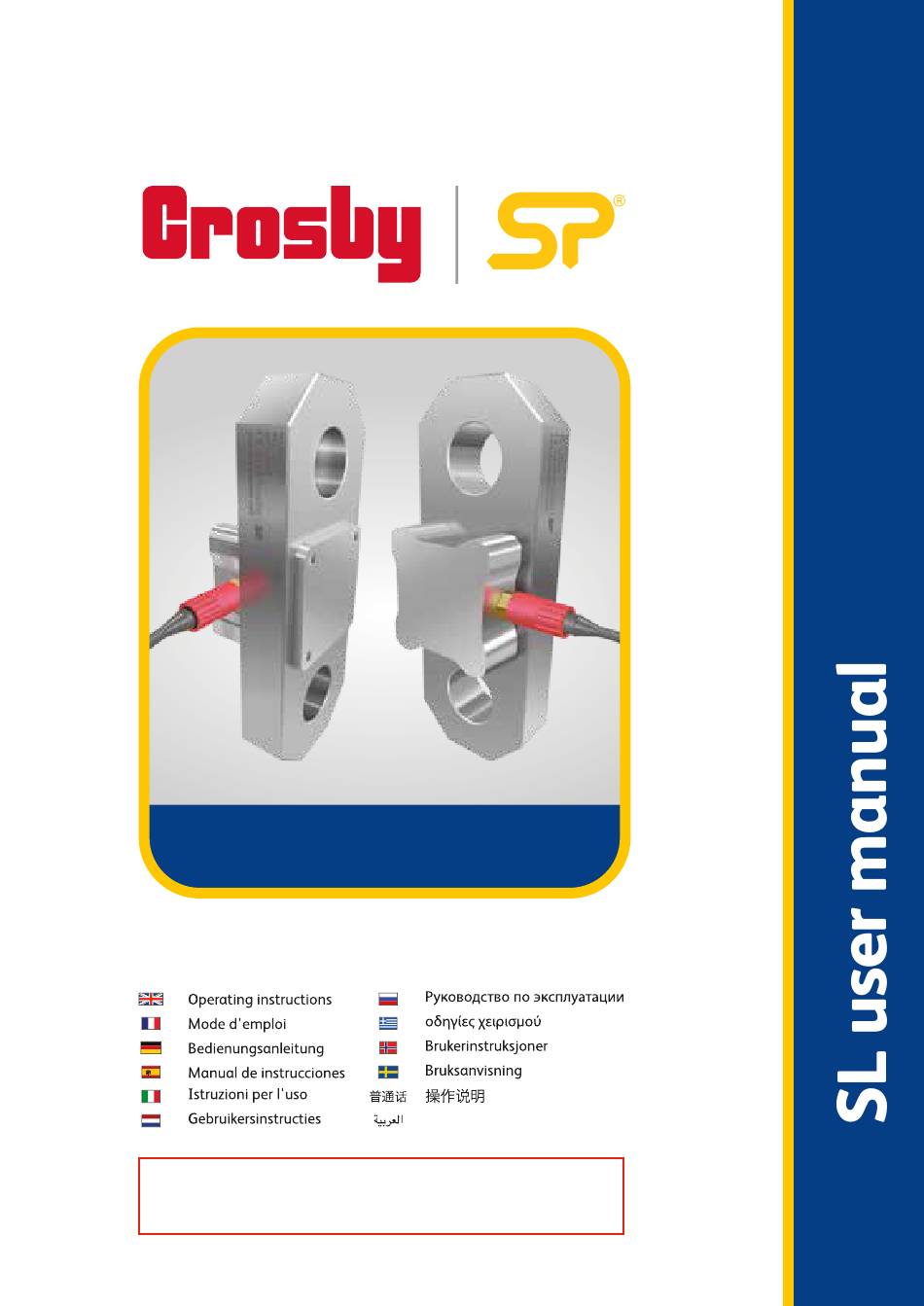

- Page 1 SL - Subsea link ﺗﻌﻠﯾﻣﺎت اﻟﺗﺷﻐﯾل v1.00 Part No: THIS MANUAL WAS WRITTEN IN THE ENGLISH LANGUAGE AND PROFESSIONALLY SU6205 TRANSLATED TO ALL OTHER LANGUAGES CONTAINED WITHIN THIS DOCUMENT. PLEASE NOTE THAT STRAIGHTPOINT ACCEPT NO RESPONSIBILITY FOR ANY ERRORS OR OMISSIONS.
- Page 2 Crosby Straightpoint 123 Proxima Park, Houghton Avenue, Waterlooville, Hampshire PO7 3DU · UK Tel: +44(0)2392 484491 · straightpoint.com SQS670 Issue 3 Registered in England No. 04375389 · VAT Registered No. 793 2451 14 August 2023 Registered Office: Suite 1, 7th Floor 50 Broadway, London, UK, SW1H 0BL...
- Page 3 Crosby Straightpoint 123 Proxima Park, Houghton Avenue, Waterlooville, Hampshire PO7 3DU · UK Tel: +44(0)2392 484491 · straightpoint.com SQS770 Issue 2 Registered in England No. 04375389 · VAT Registered No. 793 2451 14 August 2023 Registered Office: Suite 1, 7th Floor 50 Broadway, London, UK, SW1H 0BL...
- Page 4 01-04 General description and warnings SL socket 06-07 SL connection 08-09 SL ICA wiring boards SP plug and play solutions Product aftercare Service and calibration Warranty v1.00 Part No: SU6205...
- Page 5 All products manufactured and sold by Straightpoint Ltd, are sold with the express understanding that the purchaser and user are thoroughly familiar with the safe use, proper care and application of the product. Responsibility for the safe use, proper care and application of the product rests with the user. Failure of the product can occur due to misapplication, abuse, overloading, or improper care and maintenance.
- Page 6 Todos los productos que fabrica y vende Straightpoint Ltd se venden sabiendo explícitamente que el comprador y el usuario son plenamente conocedores de utilizar el producto de forma segura, cuidarlo y emplearlo. El usuario es responsable de utilizarlo de forma segura, cuidarlo y emplearlo. El mal funcionamiento del producto puede deberse a un uso indebido, abuso, sobrecarga, o cuidado y mantenimiento inadecuados.
- Page 7 Straightpoint Ltd Straightpoint Ltd : ASME B30.26-2010 « ». Straightpoint Ltd, Straightpoint Ltd Straightpoint Ltd. Straightpoint Ltd Straightpoint Ltd Όλα τα προϊόντα που κατασκευάζονται και πωλούνται από τι Straightpoint Ltd, πωλούνται ε τη ρητή επιφύλαξη ότι ο αγοραστή και ο χρήστη είναι πλήρω εξοικειω ένοι ε την ασφαλή χρήση, την κατάλληλη φροντίδα και την εφαρ ογή του προϊόντο . Η...
- Page 8 Alla produkter som tillverkas och säljs av Straightpoint Ltd säljs med uttryckliga hänvisningar om att köparen och användaren har god kännedom om säker användning, skötsel och tillämpningen av produkten. För säker användning, skötsel och tillämpningen av produkten ansvarar användaren. Felaktig användning, missbruk, överbelastning eller felaktig skötsel och underhåll kan leda till att produkten fördärvas. Det finns många statliga standarder och branschstandarder som omfattar produkterna som tillverkas och säljs av Straightpoint Ltd .
- Page 9 v1.00 Part No: SU6205...
- Page 10 v1.00 Part No: SU6205...
- Page 11 Before using the Subsea link, take some time to read this manual and familiarise yourself with it. Plug the SubConn® or equivalent connector into the SL socket, shown on the previous two pages. Make sure to read the handling instructions supplied. If using the Straightpoint Handheld Plus (HHP) refer to user manual SU3343.
- Page 12 If your Subsea link has an ICA analogue output option fitted then the following five diagrams show how it should be connected. Si votre Subsea link dispose d'une option de sortie analogique ICA équipée puis les cinq schémas suivants montrer comment il doit être connecté. Wenn Ihr Subsea link über eine eingebaute ICA-Analogausgangsmöglichkeit verfügt, dann zeigen die folgenden fünf Diagramme, wie es angeschlossen werden soll.
- Page 13 ICA3 Wiring Details OUTPUT -10 to +10V INPUT -13 to -15V INPUT +13 to +15V COMMON This device requires a bipolar power supply. Cet appareil requiert une alimentation Αυτή η συσκευή απαιτεί ένα διπολικό τροφοδοτικό électrique bipolaire. Dieses Gerät benötigt eine bipolare Denne enheten krever en topolet Stromversorgung.
- Page 14 If your Subsea Loadlink has an internal integral datalogger installed, please see the Datalogger User Manual SU6204 for instructions on how to set up and use the device with the Loadlink. Si votre Subsea Loadlink a un enregistreur de données intégral installé, veuillez vous reporter au manuel utilisateur du Datalogger SU6204 pour obtenir des instructions relatives à...
- Page 15 Avoid use within 20-30 minutes of rapid changes in temperature. The change in temperature can affect the accuracy of the device. operating temperature +50° 122° Should the display show "OVERLOAD" remove the load immediately as this indicates an overload situation. Check that the load applied is within the working load limit of the device.
- Page 16 These products are supplied with a certificate of calibration which is valid for one year. After this date, it is recommended the device is recalibrated by Straightpoint or an approved calibration laboratory. Contact the Straightpoint service department or your supplier for more information. When reporting the fault it is important to give a full description of the problem and the type of application the device is being used for.
- Page 17 Straightpoint (UK) Ltd warranty this product against malfunction for a period of two years from manufacture. Conditions of warranty: 1) The equipment is used as described exactly in the operators manual supplied. 2) Whilst we make every effort to ensure each device is calibrated before despatch, Straightpoint (UK) Ltd do not accept responsibility for inaccurate readings indicated by this equipment. 3) In the event of malfunction, the device is returned to the manufacturer: Straightpoint (UK) Ltd, Unit 9 Dakota Park, Havant, Hampshire, UK, PO9 2NJ.
- Page 18 Crosby Straightpoint 123 Proxima Park, Houghton Avenue, Waterlooville, Hants, PO7 3DU UK · Tel: +44 (0)2392 484491 2801 Dawson Road, Tulsa, OK 74110 · USA · Tel: +1 (918) 834-4611...
