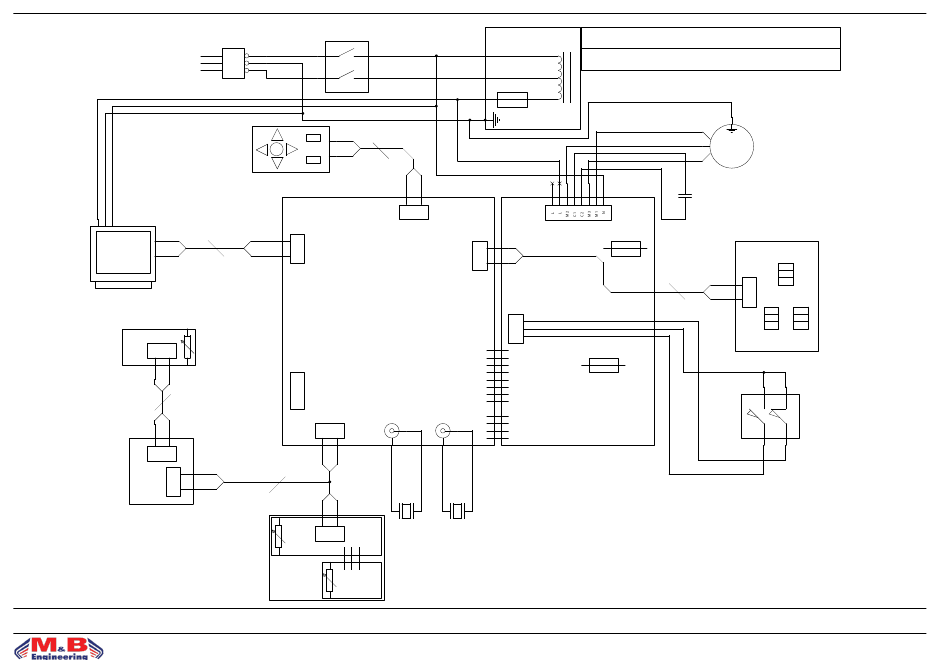

PLUG type C13
(VDE)
BLUE
1
Power supply 115 / 230 VAC
YELLOW-GREEN
2
BROWN
3
KEY BOARD
VGA
MONITOR
LCD
JP18
WIDTH
BOARD
R3
CABLE 4 POLES
(BLACK WHITE
BLUE BROWN)
JP17
M12
FLAT 10 POLES
JP16
GAUGES ADAPTER
BOARD
R1
solutions creator
MAIN
SWITCH
BLUE
BROWN
L1
BROWN
L2
YELLOW-GREEN
FLAT 8 POLES
BLUE
JP3
JP13
WB640
BOARD CPU
JP11
SERIAL
PROGRAMMING
JP8
JP6
JP9
RED
BLACK
DISTANCE
INTERNAL
EXTERNAL
JP15
BOARD
PICK-UP
PICK-UP
DIAMETER
R2
BOARD
300209
.
COD
STEP-UP TRANSFORMER
Power supply 115VAC: L1 and L2 connected to T1
115 / 230
Power supply 230VAC: L1 connected to L2 and T1 not mounted
FUSE F3
2.5A
YELLOW-GREEN
T1
JP12
FUSE F1
JP10
500mA T
JP2
1
2
3
FUSE F2
500mA T
POWER SUPPLY
BOARD
BLUE
4
GRAY
M
3
ORANGE
6
GRAY
CAPACITOR
16UF 400VAC
ORANGE
OPTO-ELECTRONIC
BOARD
JP14
FLAT 10 POLES
RED
MICRO
CARTER
RED
RED
0
.
REv
47
