STEP 11

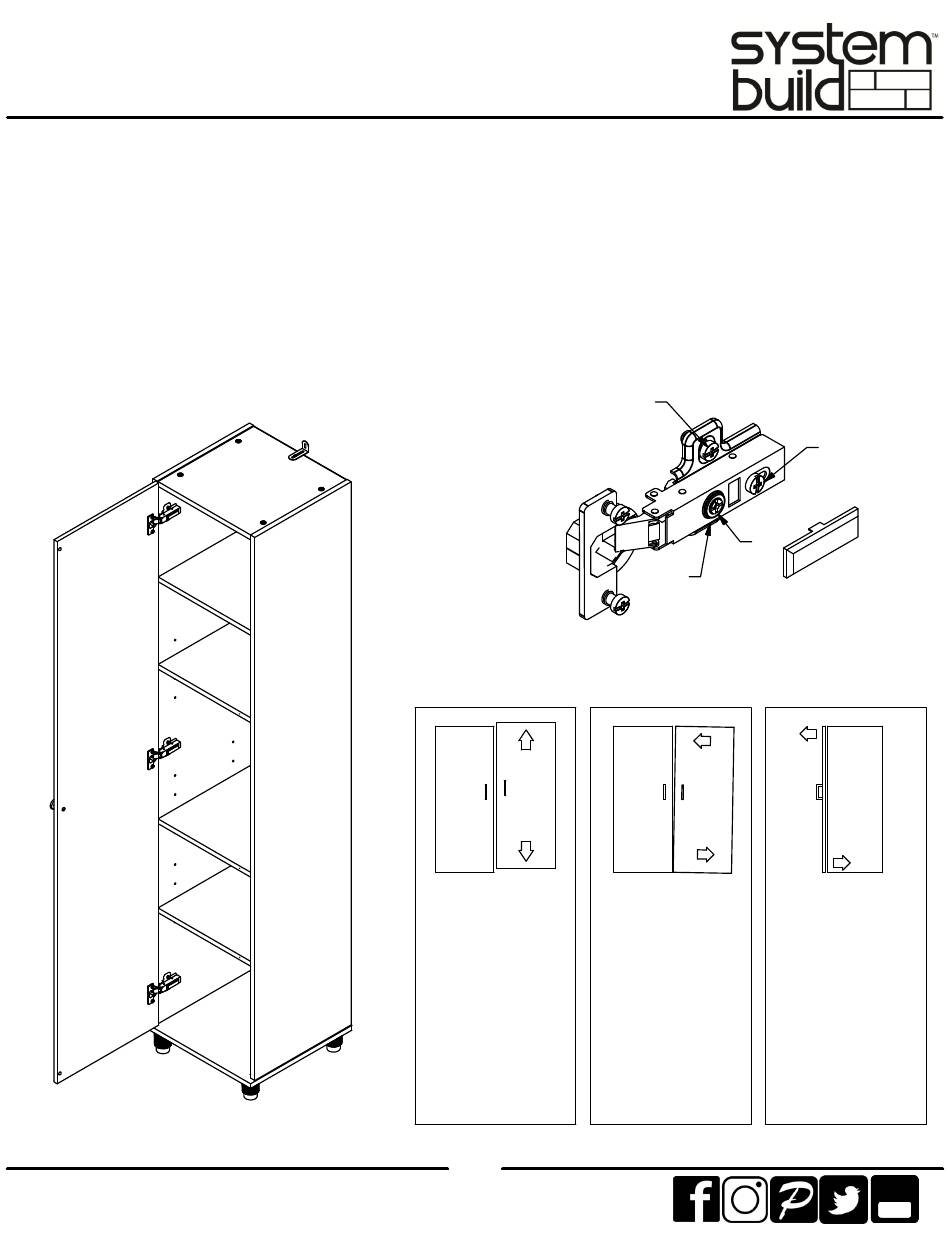

To adjust the doors, remove the cover on the back of the hinge arm to expose the two adjusting
screws.
To adjust the doors up and down, loosen the hinge plate screws. Move the door the direction
needed and retighten the screws on the hinge plates.
To adjust the doors sideways, turn the large adjustment screw on the hinge arm clockwise or
counter clockwise, depending on the sideway direction needed. The small adjustment screw needs
to be loosend or tightened in conjunction with the larger screw.
systembuild.com
Loosen screw A Loosen screw C
Adjust door. Turn screw B to
Tighten screw A
move door.
Tighten screw C
Suelte el tornillo A
Acomode la puerta. Suelte el tornillo C
Ajuste el tornillo A Dé vuelta el tornillo B
para mover la puerta.
Défaites le vis A Ajuste el tornillo C
Ajustez la porte.
Serrez le vis A Défaites le vis C
Le vis du tour B
déplacer la porte.
Serrez le vis C
17
A
B
A
Loosen screw C
Adjust door.
Tighten screw C
*side view
Suelte el tornillo C
Acomode la puerta.
Ajuste el tornillo C
*la vista lateral
Défaites le vis C
Ajustez la porte.
Serrez le vis C
*le côté envisagent
