Panasonic WhisperControl FV-SWLV1060 Instructions D'installation Et D'utilisation

Installation and Operating Instructions
FV-SWLV1060 WhisperControl
Read and Save these instructions
Thank you for purchasing this WhisperControl
or service this product. Failure to comply with the instructions could result in personal injury or property damage. Explain to
users how to operate and maintain the product after installation and this manual should be presented to the users. Retain this
manual for future references.

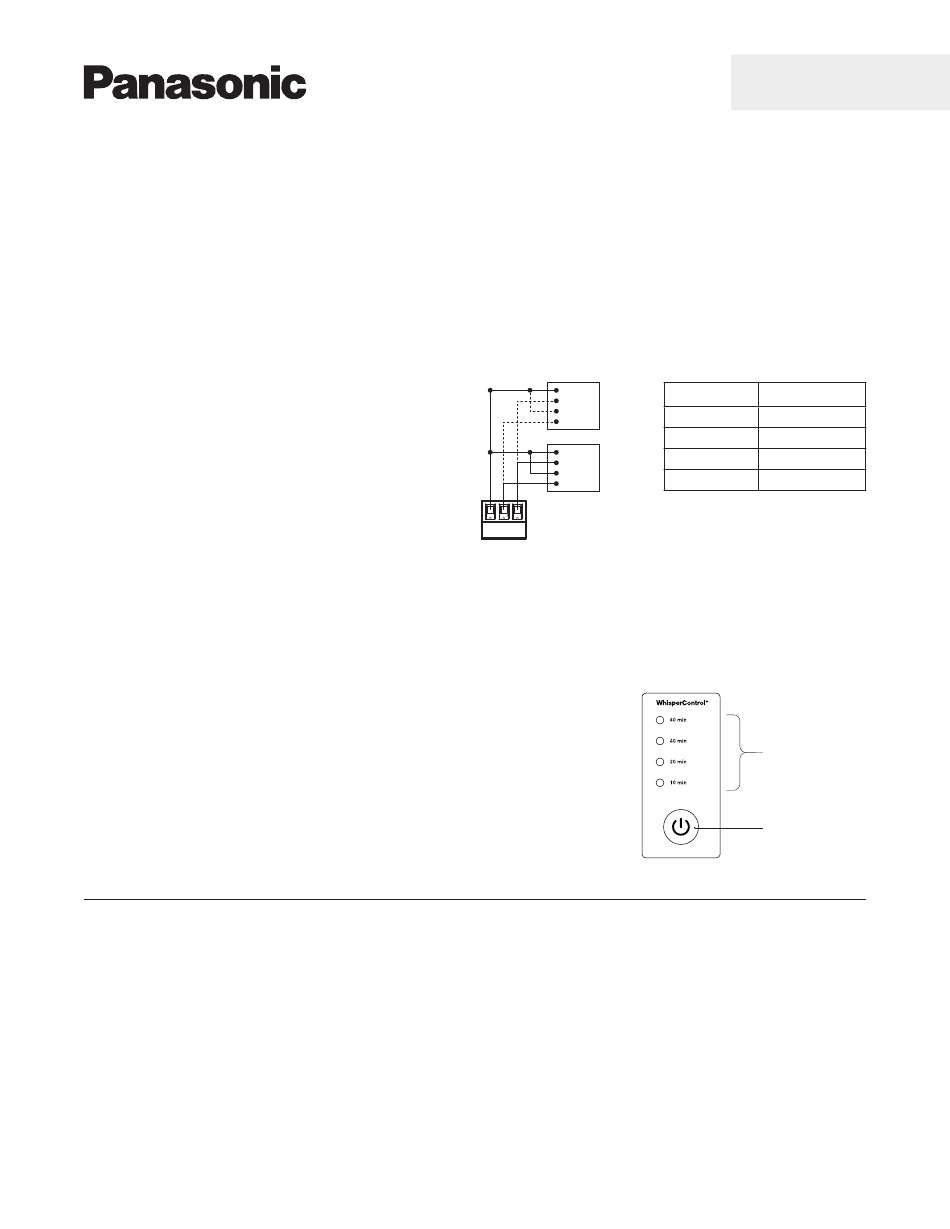

Wiring
• Using a 4-wire cable 18ga max (not supplied), insert
the stripped end of each wire into the proper terminal
connection as shown in Image 1.
• Using a small flat screwdriver, tighten the screws.
Do not overtighten!
• You can connect up to 2 timers in parallel.
Installation
• Using the 2 machine screws (supplied), screw the timer mounting plate to the electrical box.
• Using the 2 finishing screws with the Decora
• Adjust the timer and the wall plate as necessary so that they are well aligned, straight and level.
• DO NOT OVERTIGHTEN THE SCREWS!
Interval Operation
• Press the power button once to activate the ERV for 10 mins.
• Press the power button twice to activate the ERV for 20 mins.
• Press the power button three times to activate the ERV for 40 mins.
• Press the power button four times to activate the ERV for 60 mins.
• Press the power button a fifth time to deactivate the timer.
• The indicator light illuminates next to the time interval corresponding to the light.
FCC NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interferences in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning this product on and off, the user is encouraged to try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect equipment to an outlet on a different circuit from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARNING: This equipment must be installed by a qualified person in accordance with the provided installation instructions; and all applicable code and standards.
Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with the part 15 of the FCC rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation.
Low Voltage Timer
®
product. Read these instructions carefully before attempting to install, operate
®
12V BST GND
wall plate (sold separately), mount the wall plate over the timer switch.
®
SDoC Responsible Party:
Panasonic Corporation of North America
Two Riverfront Plaza, Newark, NJ 07102
Customer Call Center:
1-866-292-7299 (USA) or 1-800-669-5165 (Canada)
12VDC
Identification
COM
A
+12VDC
B
Com
Boost (low voltage switch)
12VDC
A
COM
A
B
B
Image 1
English
Description
VDC
Common/Ground
Dry contact
Dry contact
Indicator Lights
Power Button
IAQ25003ML R2
