Understanding the LED Indicators

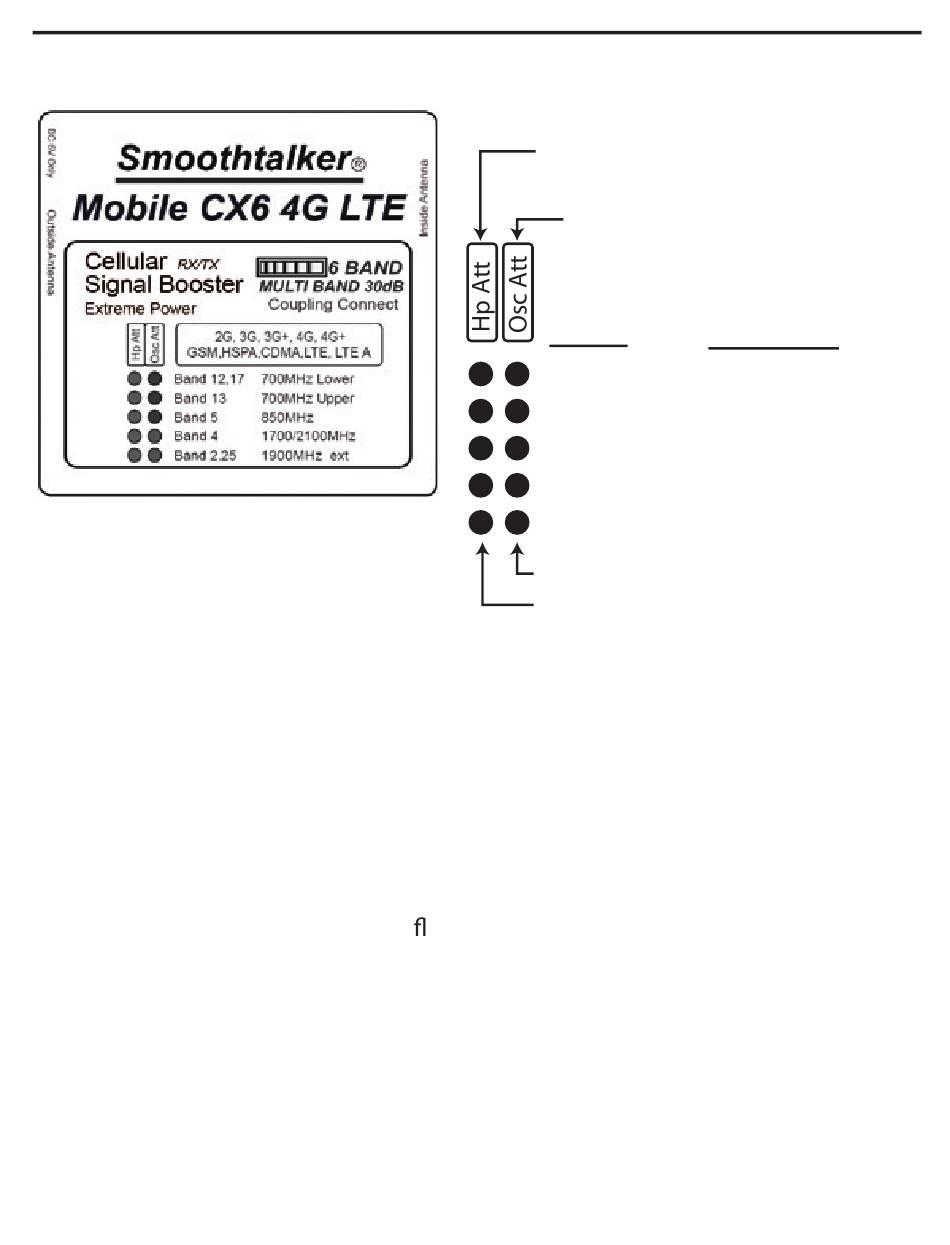

The LED lights on the booster face plate indicate the operating gain state
of the booster.
The Green and Orange lights indicate the gain status in each operating band
When Both Green and Orange LED's are "SOLID ON" it means that the booster
is operating normally with full gain (No Automatic Gain Reduction)
When one or both of the LEDS are ashing (Per the chart on back cover) it
indicates that the gain has been automatically reduced due to either:
A) High RX outside signal level (close to cell tower)
B) Loop Oscillation, which is due to the inside antenna (either on holder or
Patch antenna) and the outside antennas are located too close together.
3
RX High Power Attenuation
Atténuation de haute puissance de RX
Oscillation Attenuation
Atténuation de l'oscillation
Band
Bande
Band 12, 17
Band 13
Band 5
Band 4
Band 2, 25
Green LED Vert
Orange LED Orange
Frequency
Fréquence
700MHz Lower
700MHz Upper
850MHz
1700/2100MHz
1900MHz ext
