CAUTION
● Furrion's trim-kit is only
fitted with the below models
(FMSN09-BL, FMSN09-MG &
FMSM09AB-BL).
● For cabinet preparation
and microwave installation,
please refer to the Furrion
microwave manual for detailed
instructions.
1. Make sure all the following
items are included in the
packaging. If any items are
damaged or missing, contact
your dealer.
M4 x 1/2"
Metal Bracket x 2
Screws x 4
M4 x 13/16"
Short Strip x 2
Screws x 4
Long Strip x 2

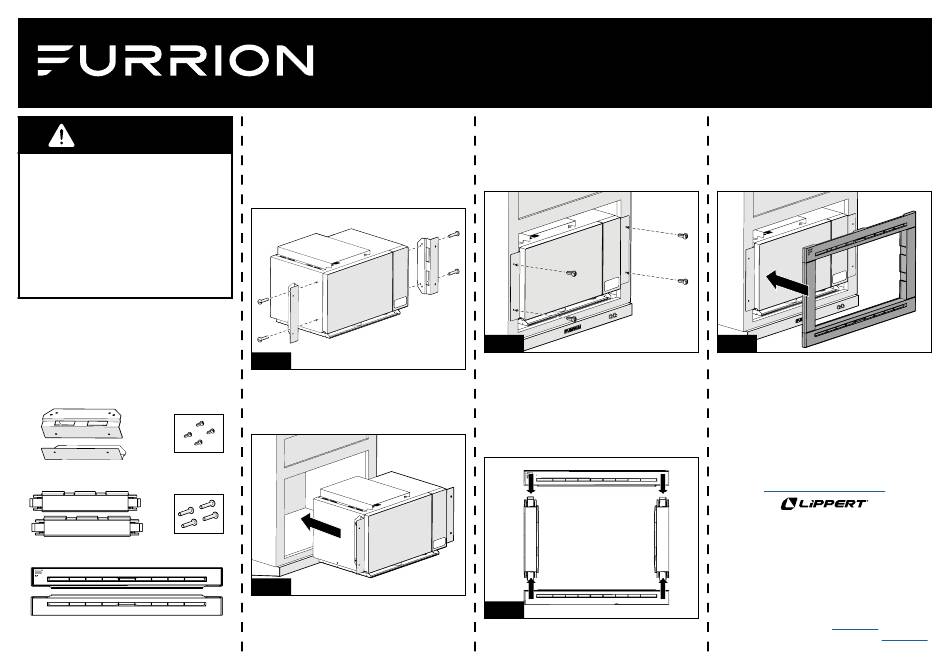

Standard Trim Kit for 0.9 cu. ft. MICROWAVE OVEN
®
Installation Guide
2. Attach the left and right
metal brackets to the
microwave oven with the
4 - M4 x 1/2" screws provided
(Fig. 1).
Fig. 1
3. Slide the microwave oven
into the cabinet opening
(Fig. 2).
Fig. 2
4. Attach the microwave into
the cabinet with the 4
provided - M4 x 13/16" screws
(Fig. 3).
Fig. 3
5. Assemble the trim kit as
shown below (Fig. 4).
NOTE: DO NOT assemble
reversed. Furrion logo
should be on top.
Fig. 4
Model: FMSM09-SS-TK
FMSM09-BL-TK
6. Install the assembled trim
over the microwave oven
and push until it snaps into
place (Fig. 5).
Fig. 5
Furrion, LLC (Furrion) are wholly owned subsidiaries
of Lippert Components, Inc. (Lippert) | Furrion, LLC:
52567 Independence Ct., Elkhart, IN, 46514
Furrion Innovation Center & Institute of Technology
22244 Innovation Drive, Elkhart, IN 46514-5514, USA
Toll free:1-800-789-3341
Email: customerservice@lci1.com
©2007-2024 Furrion, LLC. All rights reserved.
For Patent Info: www.Lippert.com/patents
SUPPORT.LCI1.COM/FURRION
The contents of this manual are proprietary and
copyright protected by Lippert. Lippert prohibits the
copying or dissemination of portions of this manual
unless prior written consent from an authorized
Lippert representative has been provided. Any
unauthorized use shall void any applicable warranty.
The information contained in this manual is subject
to change without notice and at the sole discretion
of Lippert. Revised editions are available for free
download from lippert.com.
Ph: 432-LIPPERT (432-547-7378) | Web:
lippert.com
Rev. 06-06-24 CCD-0008965
