Omer 80.16 RB4 Mode D'emploi Et De Maintenance page 2

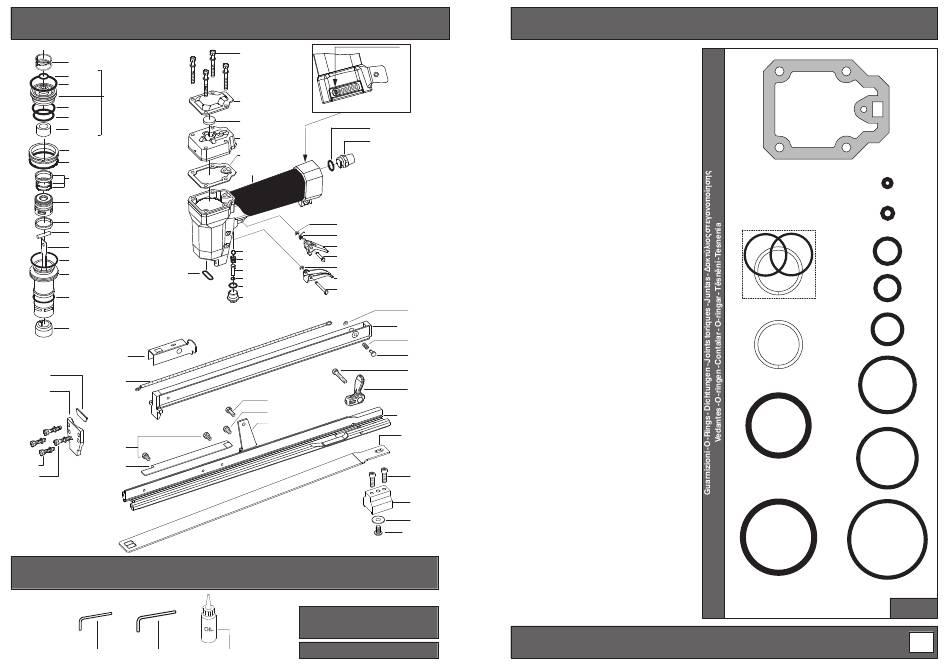

Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Recambios - Ανταλλακτικά - Partes sobresselentes
Wisselstukken - Yedek parçalar - Reservdelar - Náhradní díly - Náhradné diely
92.01X
00.12
01.33
40.04.4
01.29
00.26
44.04.4
45.04
00.35
01.21.1
30.07.3
01.21.3
14.18.1
22.00.80-1685
00.35
00.14
26.07
00.27
32.05
71.05.80
81.00.80
93.07
91.05.80
04.10
04.16 64.05.2
04.20
Dotazioni - Equipment - Ausstattung - Outillage - Dotaciones - Εξοπλισμός
Dotações - Uitrusting - Donanımlar - Utrustning - Vybavení - Výbava
07.30 07.40
INDICE DI MODIFICA
04.35
UPGRADE NUMBER
NIVEAU DE MODIFICATION
INDICADOR DE MODIFICA
MATRICOLA
25.04 SERIAL NUMBER
MATRICULE
MATRICULA
39.00
00.14
22.07
24.00
28.00
20.00
09.02
90.10
81.15
07.05
76.14
91.03X
09.02
54.03
00.06 81.09
00.13
76.04
55.06
63.05.80
04.12
04.10
52.02.80
72.03.4
80.16 RB4
c o d . 1 1 4 6 0 5 2 1 0 R B 4
D01
Parti di ricambio - Spare parts - Ersatzteile - Pièces de rechange - Recambios - Ανταλλακτικά - Partes sobresselentes
Cod. Descrizione
00.06 O-Ring
00,12 O-Ring
00.13 O-Ring
00.14 O-Ring
00.26 O-Ring
00.27 O-Ring
00.35 O-Ring
01,21,1 Guarnizione
01.21.3 Guarnizione
01.29 O-Ring
01.33 O-Ring
04.10 Vite
04.12 Vite
04.16 Vite
04,20 Vite
04.25 Vite
04.35 Vite
05.12 Vite
07.05 Sfera
07.30 Chiave esagonale
07.40 Chiave esagonale
09.02 Anello elastico
14.18.1 Spina
20.00 Corpo
22.07 Testa
24,00 Silenziatore
25.04 Deflettore
09.02
26.07 Cilindro
28.00 Guarnizione
30.07.3 Pistone
91.05
32,05 Ammortizzatore
39.00 Guarnizione scarico
73.00
40.04.4 Valvola completa
43.13 Rondella
04.25
44.04.4 Ammortizzatore
45.04 Anello valvola
80.09
50.05 Comando a distanza
54.03 Pulsante
55.06 Raccordo Pulsante
64.05.2 Carter
69.01.4 Ribaditore
69.01.4
72.03.4 Reggicaricatore
73.00 Perno
76.04 Perno
76.14 Perno
05.12
80.09 Grilletto chiusura
81.09 Grilletto comando
81.15 Controgrilletto
88.12
88.12 Distanziale
90.10 Molla
43.13
91.05 Molla
06.10.1 91.03X Molla
92.01X Molla
93.07 Molla
22.00.80-1685 Battente
52.02.80 Caricatore
63.05.80 Carrello
71.05.80 Spingipunto
81.00.80 Controtestina
91.05.80 Testina
D01 Boccetta olio
80.16 RB4
Wisselstukken - Yedek parçalar - Reservdelar - Náhradní díly - Náhradné diely
Description
O-Ring
O-Ring
O-Ring
O-Ring
O-Ring
O-Ring
O-Ring
Gasket
Gasket
O-Ring
O-Ring
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Ball
Hex. bar wrench
Hex. bar wrench
Elastic ring
Pin
Body
Head
Silencer
Exhaust deflector
Cylinder
Gasket
Piston
Bumper
Exhaust gasket
Valve ass'y
Washer
Bumper
Ring
Remote control trigger
Trigger valve
Trigger bush
Hold down
Reverter
Support
Pin
Pin
Pin
Trigger
Trigger
Trigger
Spacer
Spring
Spring
Spring
Spring
Spring
Driver
Magazine
Slider
Pusher
Nose
Nose plate
Oiler
c o d . 1 1 4 6 0 5 2 1 0 R B 4
28.00
00.04
00.06
00.12
00.13
01.21.1
00.14
01.21.3
00.26
01.29
00.27
01.33
00.35
00.70.5
Indice di modifica
6
Upgrade number
