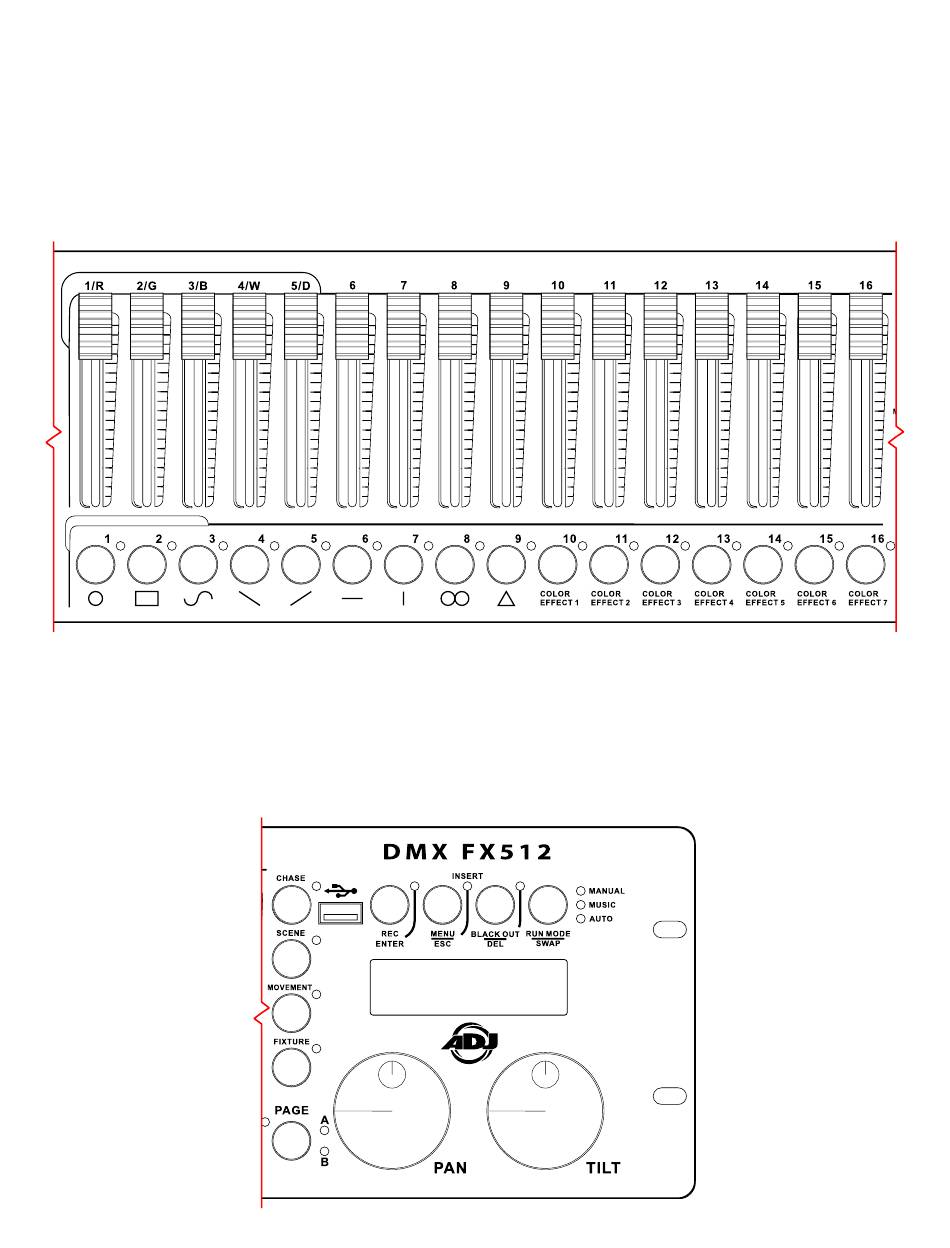

C O N T R O L S A N D O P E R AT I O N G U I D E
NUMBER BUTTONS:
In CHASE mode, press a number button to activate or deactivate the chase. In SCENE mode, press
a number button to activate or deactivate the scene. In MOVEMENT mode, press a number button to
activate or deactivate the movement. In FIXTURE mode, press a number button to select or deselect
a fixture.
FADERS:
In FIXTURE mode, slide a fader to adjust the DMX output value.
E F F E C T S
E F F E C T S
PAN/TILT WHEELS:
These controls have alternate functions in different modes:
•
In CHASE mode, the PAN/TILT wheels adjust the chase speed and time respectively.
•
In SCENE mode, nothing is defined in the PAN/TILT wheels.
•
In MOVEMENT mode, PAN/TILT wheels adjust the MOVEMENT parameters.
•
In FIXTURE mode, the PAN/TILT wheels adjust the output values of PAN/TILT.
•
Default setting: Pan Wheel is assigned to Channel 1, and Tilt Wheel is assigned to Channel 2.
9
