1. Insert Lanyard Web Loop (A) through Web Loop or
D-ring on harness (B).
2. Insert opposite end of Lanyard through the Lanyard
Web Loop.
3. Pull the Lanyard through the connecting Web Loop to
secure.
2.11 ANCHORAGE & ANCHORAGE STRENGTH: Anchorage and anchorage strength requirements are dependent
on the full body harness application (see Figure 3). In accordance with ANSI Z359.1, anchorages selected for Fall
Arrest Systems must meet the anchorage strength requirements defined in Table 2.
Fall Arrest
1
Restraint
1
work Positioning
1
Rescue
1
Climbing
1 Multiple systems: When more than one of the defined system is attached to an anchorage, the strength defined for Non-Certified or
Certified anchorages shall be multiplied by the number of systems attached to the anchorage.
2 Certified Anchorage: An anchorage for fall arrest, positioning, restraint, or rescue systems that a qualified person certifies to be ca-
pable of supporting the potential fall forces that could be encountered during a fall or that meet the criteria for a certified anchorage
prescribed in this standard.

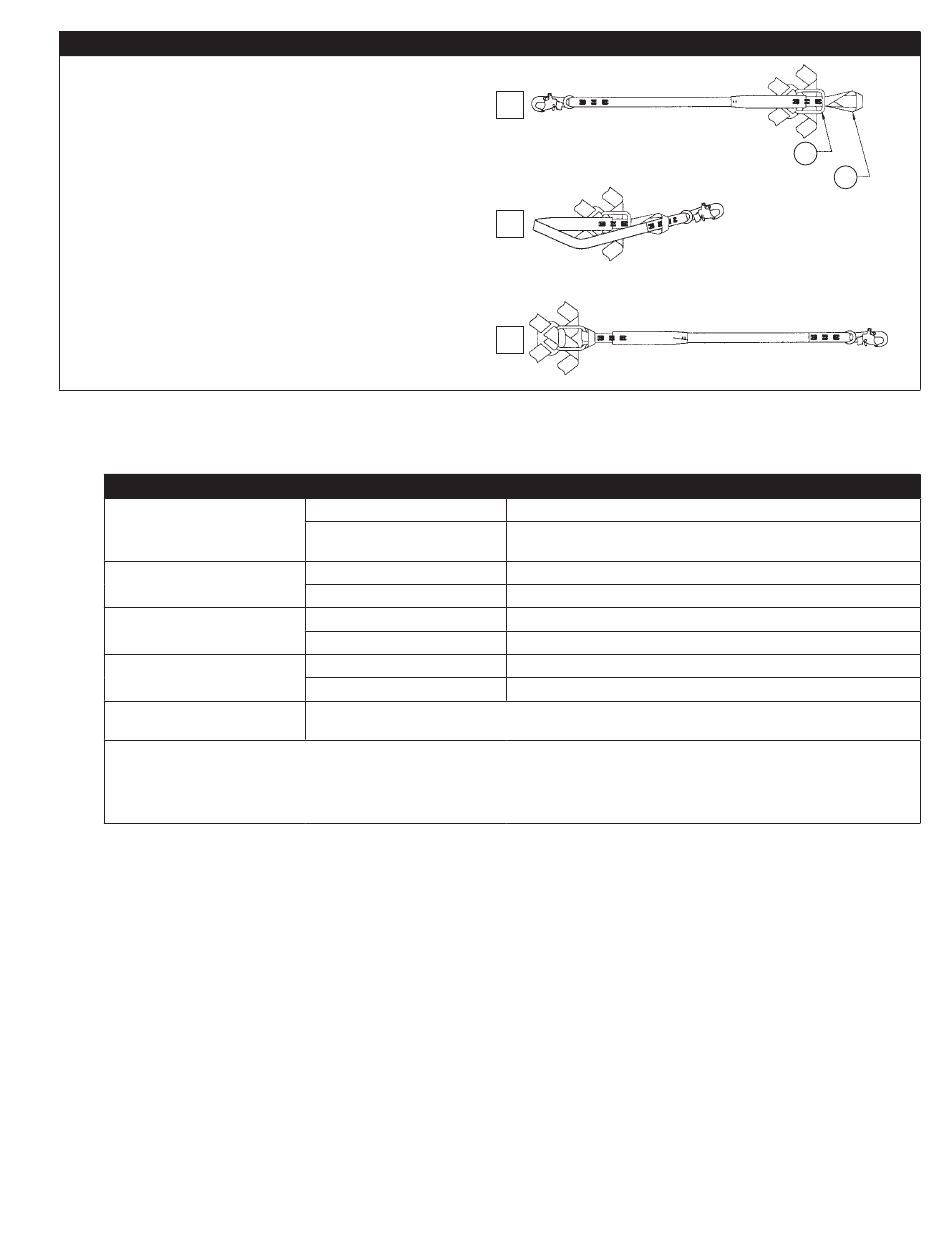

Figure 8 - web loop Connection
Table 2 - Anchorage Strength Requirements
Non-Certified Anchorages:
Certified Anchorages :
2
Non-Certified Anchorages
Certified Anchorages :
2
Non-Certified Anchorages
Certified Anchorages :
2
Non-Certified Anchorages
Certified Anchorages :
2
The structure to which a climbing system is attached must sustain the loads required by that
particular system. See the instructions for the climbing system for requirements.
7
1
2
3
5,000 lbs (22.2 kN)
2 times the Maximum Arresting Force for Certified
Anchorages
1,000 (4,5 kN)
2 times the foreseeable force for certified anchorages.
3,000 lbs (13.3 kN)
2 times the foreseeable force for certified anchorages.
3,000 lbs (13.3 kN)
5 times the foreseeable force for certified anchorages.
