English – 2
Technical Data
Smartphone holder
Product code
Charging capacity via USB
port
Inductive charging capacity
Operating temperature
Storage temperature
Protection rating
Weight, approx.
Declaration of Conformity
Robert Bosch GmbH, Bosch eBike Systems, hereby declares
that the SmartphoneGrip radio communication unit com-
plies with Directive 2014/53/EU. The full text of the EU De-
claration of Conformity can be accessed at the following In-
ternet address: www.bosch-ebike.com/conformity.
Robert Bosch GmbH, Bosch eBike Systems, hereby declares
that the SmartphoneGrip radio communication unit com-
plies with the Radio Equipment Regulations 2017 (SI
2917/1206). The full text of the UK Declaration of Conform-
ity can be accessed at the following Internet address:
www.bosch-ebike.com/conformity.
Assembly
SmartphoneGrip Assembly (see figure A)
Press and hold the release mechanism (4) to position the
SmartphoneGrip. Place the upper edge of the Smart-
phoneGrip next to the snap-in hook (6) of the Smart-
phoneGrip mount (5) ➊. Pull the SmartphoneGrip towards
you and push the SmartphoneGrip onto the SmartphoneGrip
mount ➋. Let go of the release mechanism (4).
Press the release mechanism (4) while pulling it towards
you ➊ to remove the SmartphoneGrip. Remove the Smart-
phoneGrip and let go of the release mechanism (4) ➋.
Smartphone Assembly (see figure B)

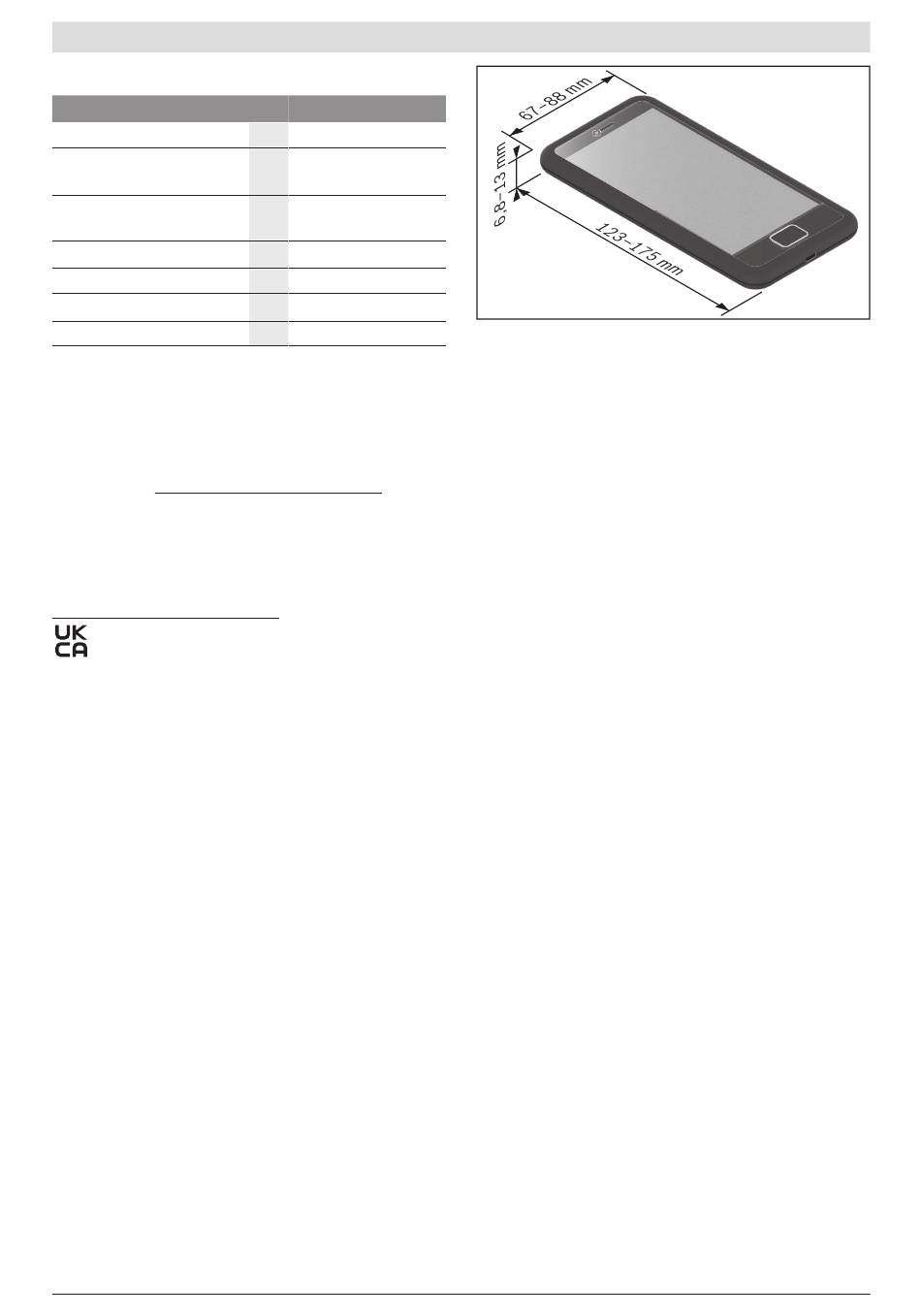

The SmartphoneGrip can hold smartphones in the following
sizes:
0 275 008 3SG | (09.02.2024)
SmartphoneGrip
BSP3200
W 5 W (1 A at 5 V)
W 7.5 W (1.5 A at 5 V)
Efficiency > 67 %
°C −5 to 40
°C 10 to 40
IP55
g 75
The specified dimensions include any phone cases. Smart-
phones with folio and carrying cases must not be used.
The total weight must not exceed 276 g.
Insert your smartphone (13) with the long side of the phone
positioned at the centre against the movable retaining
bracket (1). Press the smartphone (13) against the movable
retaining bracket (1) with both hands ➊ and place your
smartphone (13) in the SmartphoneGrip ➋.
Be careful not to pinch your fingers between the movable
u
retaining bracket and the SmartphoneGrip when inserting
your smartphone.
Once you have inserted your smartphone, check that the
smartphone cannot come into contact with any hard parts on
the eBike even in case of vibrations, as this could cause last-
ing damage to the smartphone.
Keypad Lock Assembly (see figure C)
Note: Do not use a ball end hex key on flat head hex screws.
The keypad lock (11) supplied prevents the Smart-
phoneGrip from being quickly and easily removed by block-
ing the release mechanism (4).
To insert the keypad lock (11), slide the keypad lock (11)
into the provided opening ➊ and carefully screw it into place
with a hex key (1.5 mm) (12) ➋.
Note: The keypad lock is not an anti-theft device. The
keypad lock prevents the SmartphoneGrip from being
quickly removed from the holder. The keypad lock does not
affect the smartphone in any way.
Note: Never leave your smartphone unattended in the
SmartphoneGrip.
To remove the keypad lock (11), unscrew it with a hex key
(1.5 mm) (12) and remove the keypad lock (11).
