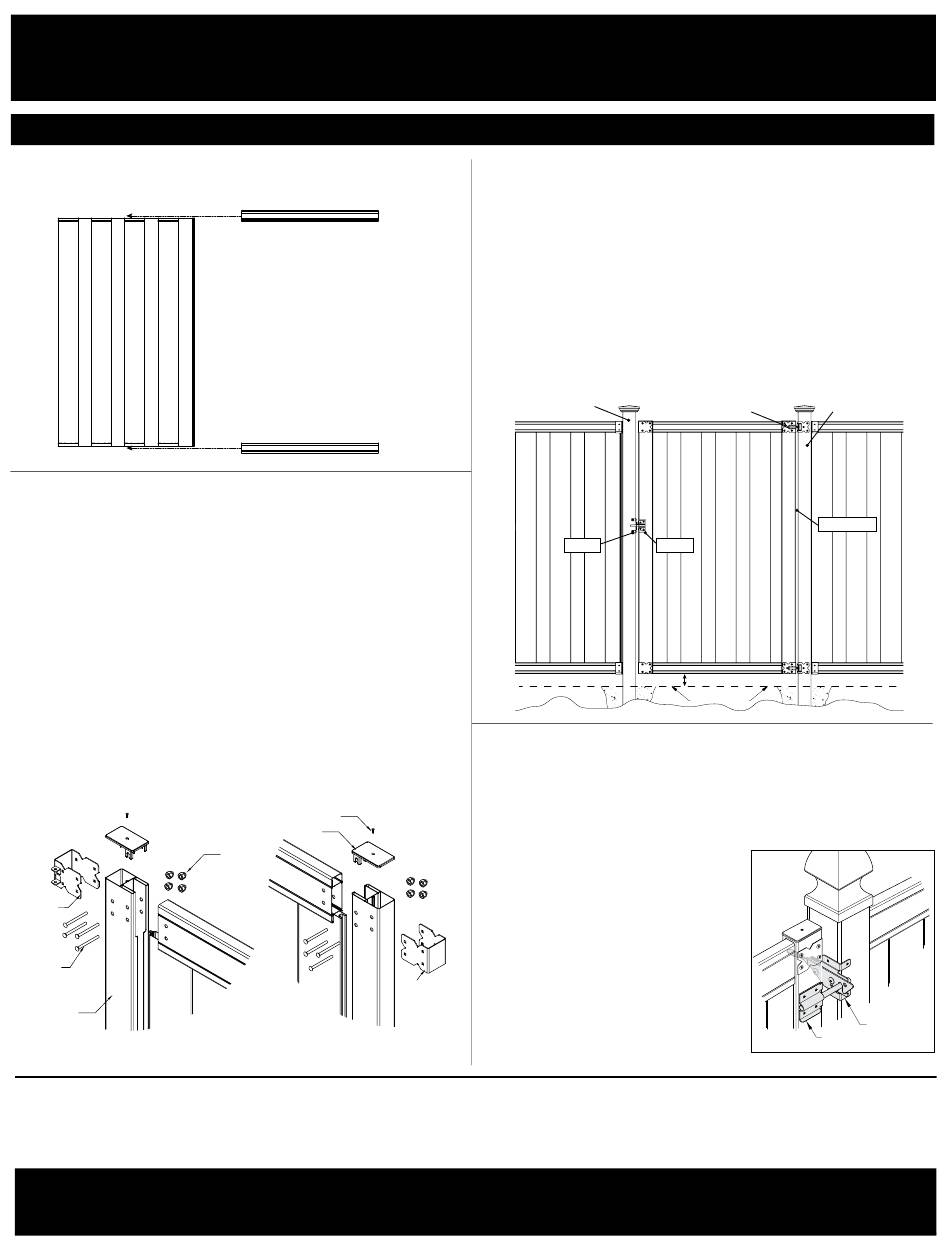

6' X 42" BOARD-ON-BOARD PRIVACY GATE – ASSEMBLY INSTRUCTIONS
STEP 2
Slide the rails onto the assembled pickets.
STEP 3
Place gate jambs on both sides of the rails. Ensure the rails are
fully inserted into the jambs.
Considering your swing direction, slide the hinged brackets and
non-hinged brackets onto the gate jambs in the center of the top
and bottom rails. Using the holes in the brackets as a guide, drill
¼" holes through the jamb and rail for the bolts. The bolts need to
go through the jamb and rail to function properly.
STEP 4
Insert the bolts into the predrilled holes and loosely attach the
nuts (these will be tightened later). Once all brackets are loosely
fastened, measure gate from corner-to-corner to ensure gate is
square. Adjust as necessary. When square, tighten all bolts with
a 7/16" wrench. Do not over-tighten as it may crush the gate jambs.
Hinged
Bracket
Through
Bolts
Gate
Jamb
THE DIAGRAMS AND INSTRUCTIONS IN THIS BROCHURE ARE FOR ILLUSTRATION PURPOSES ONLY AND ARE NOT MEANT TO REPLACE A LICENSED PROFESSIONAL. ANY CONSTRUCTION OR
USE OF THE PRODUCT MUST BE IN ACCORDANCE WITH ALL LOCAL ZONING AND/OR BUILDING CODES. THE CONSUMER ASSUMES ALL RISKS AND LIABILITY ASSOCIATED WITH THE
CONSTRUCTION OR USE OF THIS PRODUCT. THE CONSUMER OR CONTRACTOR SHOULD TAKE ALL NECESSARY STEPS TO ENSURE THE SAFETY OF EVERYONE INVOLVED IN THE PROJECT,
INCLUDING, BUT NOT LIMITED TO, WEARING THE APPROPRIATE SAFETY EQUIPMENT. EXCEPT AS CONTAINED IN THE WRITTEN LIMITED WARRANTY, THE WARRANTOR DOES NOT
PROVIDE ANY OTHER WARRANTY, EITHER EXPRESS OR IMPLIED, AND SHALL NOT BE LIABLE FOR ANY DAMAGES, INCLUDING CONSEQUENTIAL DAMAGES.
©2022 UFP Retail Solutions, LLC. All rights reserved. UFP Retail Solutions is an affiliate of UFP Industries, Inc.
Assembling and Hanging the Gate continued
Gate Cap Screw
Gate Cap
Cap Nuts
©2019 Universal Forest Products, Inc. All rights reserved.
68956 U.S. Hwy 131, White Pigeon, MI 49099 1-855-556-1852 10405_1/19
2801 East Beltline NE, Grand Rapids, MI 49525 (844) 529-5882
STEP 5
Align the rails on the gate with the rails on the existing fence. There
must be at least a 2" gap from ground to bottom rail for the gate to
function properly. Test swing direction before attaching brackets to
post.
Secure the gate in place with blocks under the gate or clamp the
jamb on the gate to the post. Adjust hinges to make sure the gate
is level and square. To adjust hinges, move hex nuts in or out as
needed and tighten with a wrench.
Attach hinged brackets to the hinge post with the provided screws.
Remove the blocks and clamps. Readjust hinges as needed so gate
is square and level with equal spacing between the gate and posts.
Latch Post
Latch
STEP 6
Attach latch to post and striker to gate in the desired location using
the screws provided.
Note: The gate latch is designed to be used on the left or right
hand side of the gate. The latch is assembled, ready to be installed
on the right hand side of the gate. If
you desire to switch the latch, follow
these steps:
- Remove the 2 shoulder bolts and
spring.
- Change orientation of the clicker.
- Re-attach spring and insert
Bracket
shoulder bolts.
- Shoulder bolts must be fully
tightened.
www.ufpi.com
www.ufpi.com
Hinged Brackets
Hinge Post
5/8" Space
Striker
2" gap
Ground Line
Striker
14247_5/22
