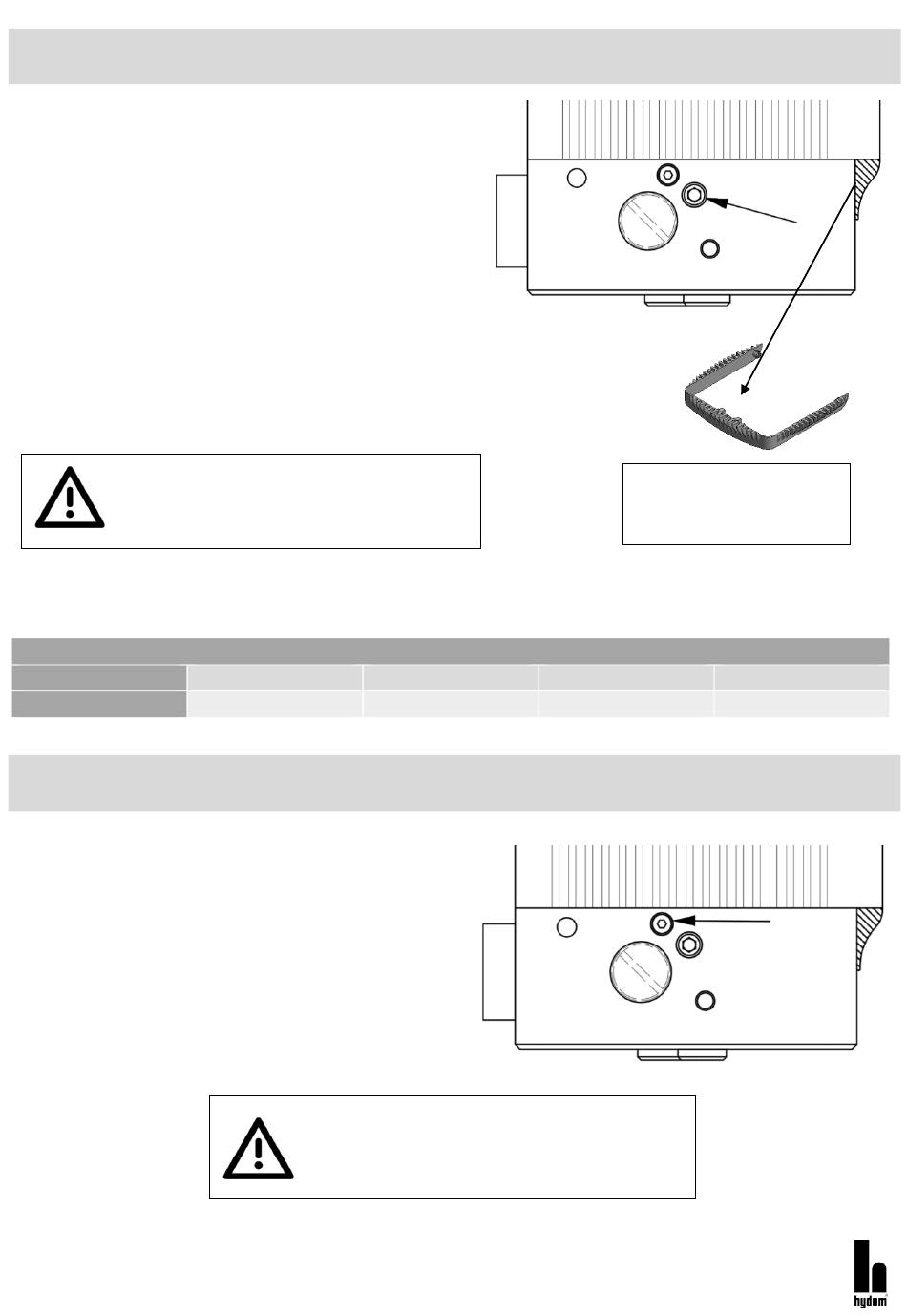

BLOCKING SETTING
The Hydom 4GB hydraulic power pack is delivered from the factory
configured without locking.
To configure other options, you will need to open or close tap A
and/or tap B with a 4mm Allen wrench. The taps are located next to
the speed throttles (see page 4). Caution: do not confuse locking
adjusters (4mm) with speed adjusters (2.5mm).
• Red plug side tap → Selects the locking of circuit B.
• Green plug side tap → Selects the blocking of circuit A.
• Tap closed → Tighten until it stops.
• Tap open → Once the tap is tightened, unscrew it by one and a half turns.
WARNING: When loosening the selectors, avoid
loosening more than 2 turns, as this could cause oil
leakage and render the equipment unusable.
BLOCKING TYPE
BLOCKING A
BLOCKING B
SPEED REGULATION
To regulate the speed of the hydraulic power pack, the adjustable
restrictor on each side of the pump must be screwed in with a 2.5
mm Allen key.
• Red plug side throttle → Regulates the speed of socket A.
• Green plug side throttle → Regulates the speed of socket B.
NO BLOCKING DOUBLE BLOCKING
OPEN
OPEN
WARNING: When loosening the adjusters, make sure
that they do not protrude from the wall of the equipment,
as this could cause oil leaks and render the equipment
unusable. Adjust from 1/4 turn to 1/4 turn.
BLOCKING IN A
CLOSED
CLOSED
-11-
CAUTION: To gain access to the
pressure regulators, remove the
frontal cover.
BLOCKING IN B
CLOSED
OPEN
OPEN
CLOSED
