Product and function descriptions,

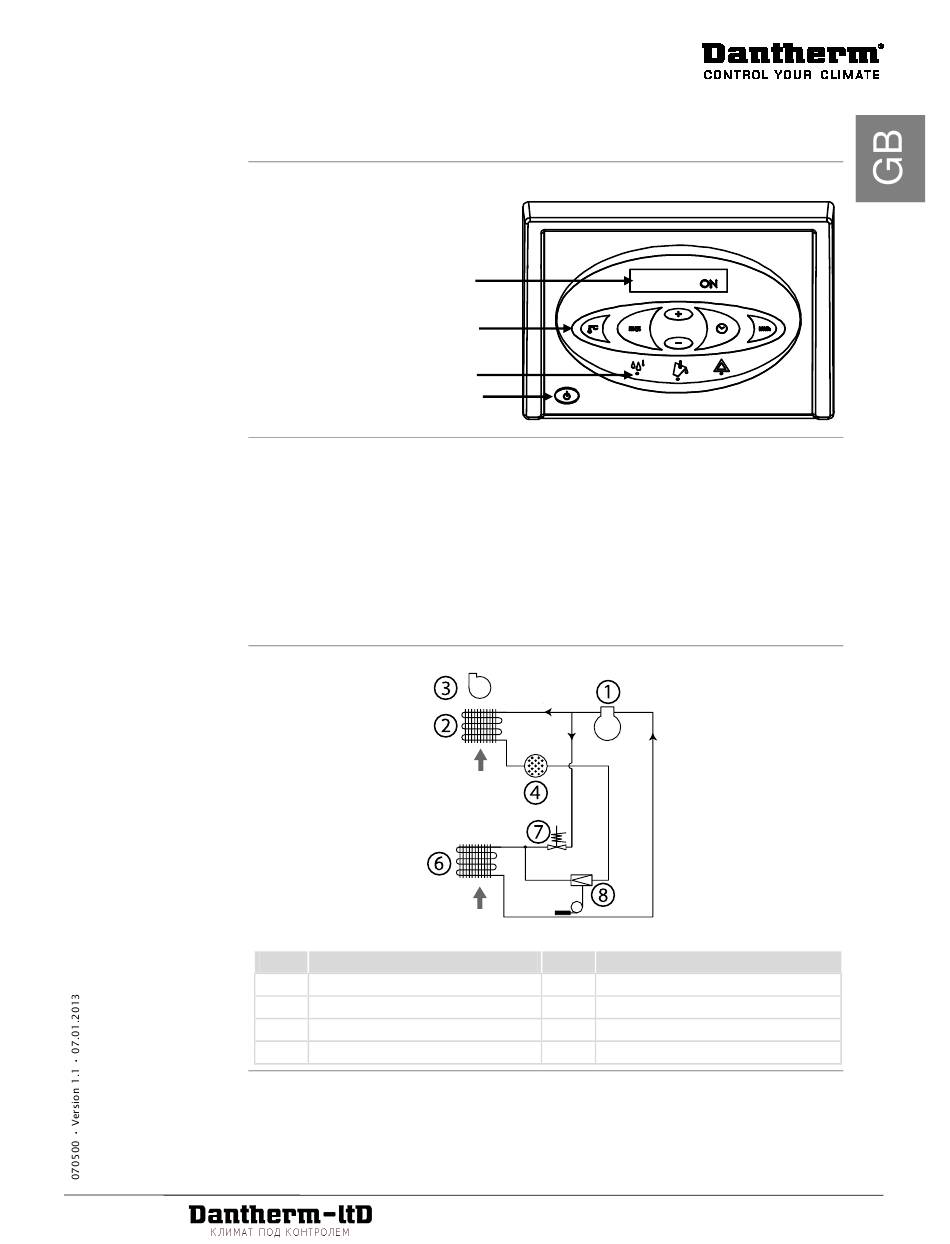

Control panel Illustration of control panel:
Functions Main functions:
•
•
•
•
•
Operation described in the user guide in this manual.
Cooling circuit dia-
gram
Pos.
1
2
3
4
All manuals and user guides at all-guides.com
cont.
Display
Function keys
Status indicators
Main switch
Manual or auto (built-in adjustable hygrostat).
External hygrostat socket.
Display of temperature, relative air humidity, hours and kWh consumption.
Hour counter and kWh consumed readout, without 230V connection.
Adjustable service interval counter.
Description
Compressor
Condenser
Fan
Dry filter
www.dantherm-ltd.ru • info@dantherm-ltd.ru • +7 (495) 545-48-79
Москва. Каширский проезд д. 19 стр. 2
Pos. Description
6 Evaporator
7 Solenoid
8 Thermostatic expansion valve
