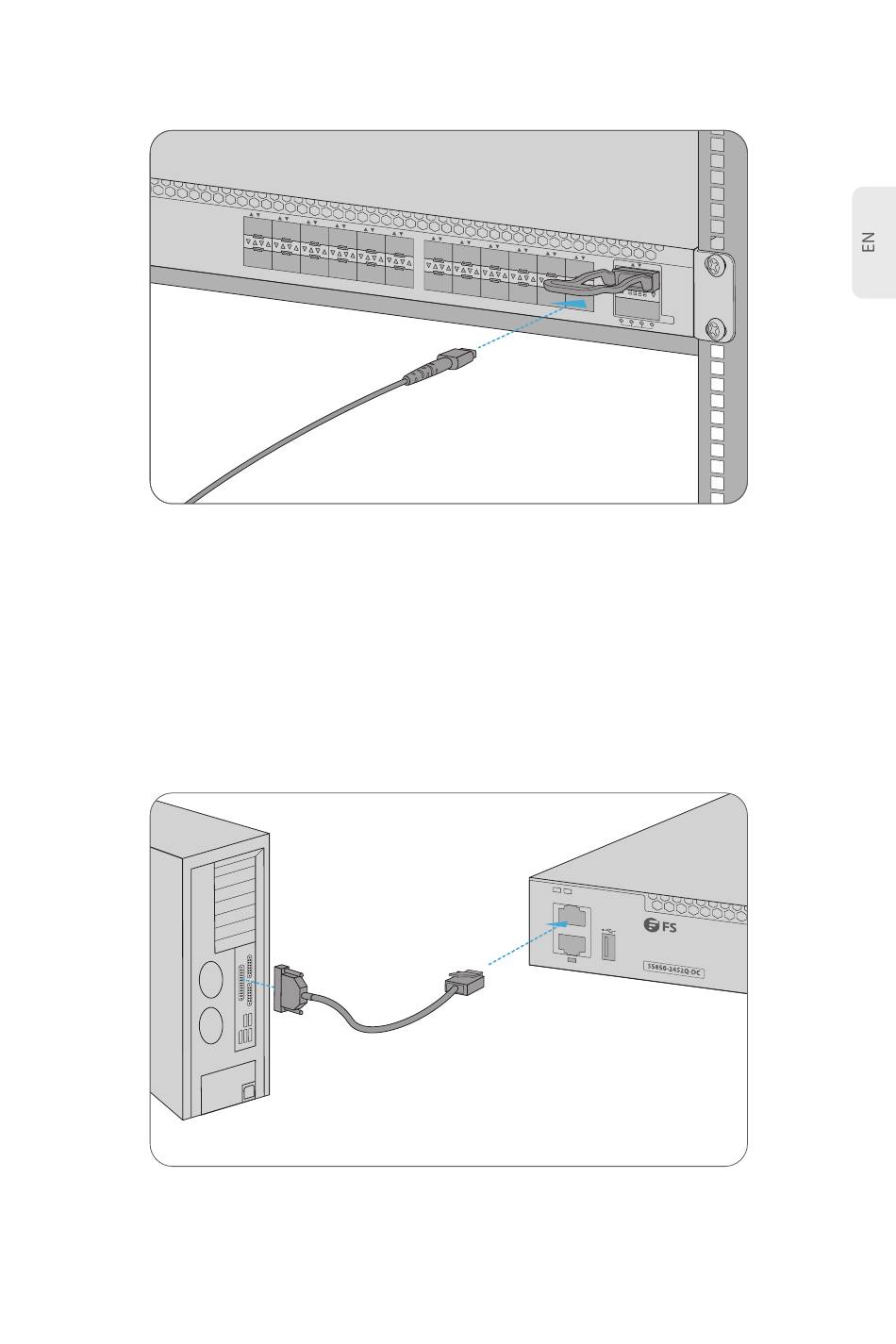

Connecting the QSFP28 Ports
First install QSFP28 transceivers and then connect the fiber optic cable to the transceiver ports, or
connect DAC cables to the QSFP28 slots.
Connecting the Management Ports
Connecting the Console Port
1. Insert the RJ45 connector of the console cable into the RJ45 console port on the front of the switch.
2. Connect the other end of the console cable to the RS-232 serial port on the computer.
