User Manual Overhead Projector reflecta cubus 251, 253 and 401, 403

MAINTENANCE AND REPAIR

1. Lamp changing: Attention! Hot parts! Do not exchange lamp until the projector has
cooled down!
Pull out mains plug before opening the projector.
Press the platen housing lock lever an pull out faulty lamp, push new one straight
into the socket right to the stop (Fig. 5). Close down cover.
2. When lamp and fan simultaneously fail to operate, exchange the fuse (located
below the connector socket for the mains cable)
250 W – Fuse type T 3,0 A
400 W – Fuse type T 5,0 A
Allow only a trained specialist to open the projector, since high-tension parts
may become freely accessible.
3. Cleaning optical parts:
Press button to release cover. Attention: Use only a soft cloth. This also applies to
the cleaning of the lens.
Note: Take care when replacing the Fresnel lens to ensure that the label UP points
towards the lens.
4. Let appliance cool completely before putting away or when replacing the lamp.
Our policy of continuous improvement may result in changes of appearance and specification

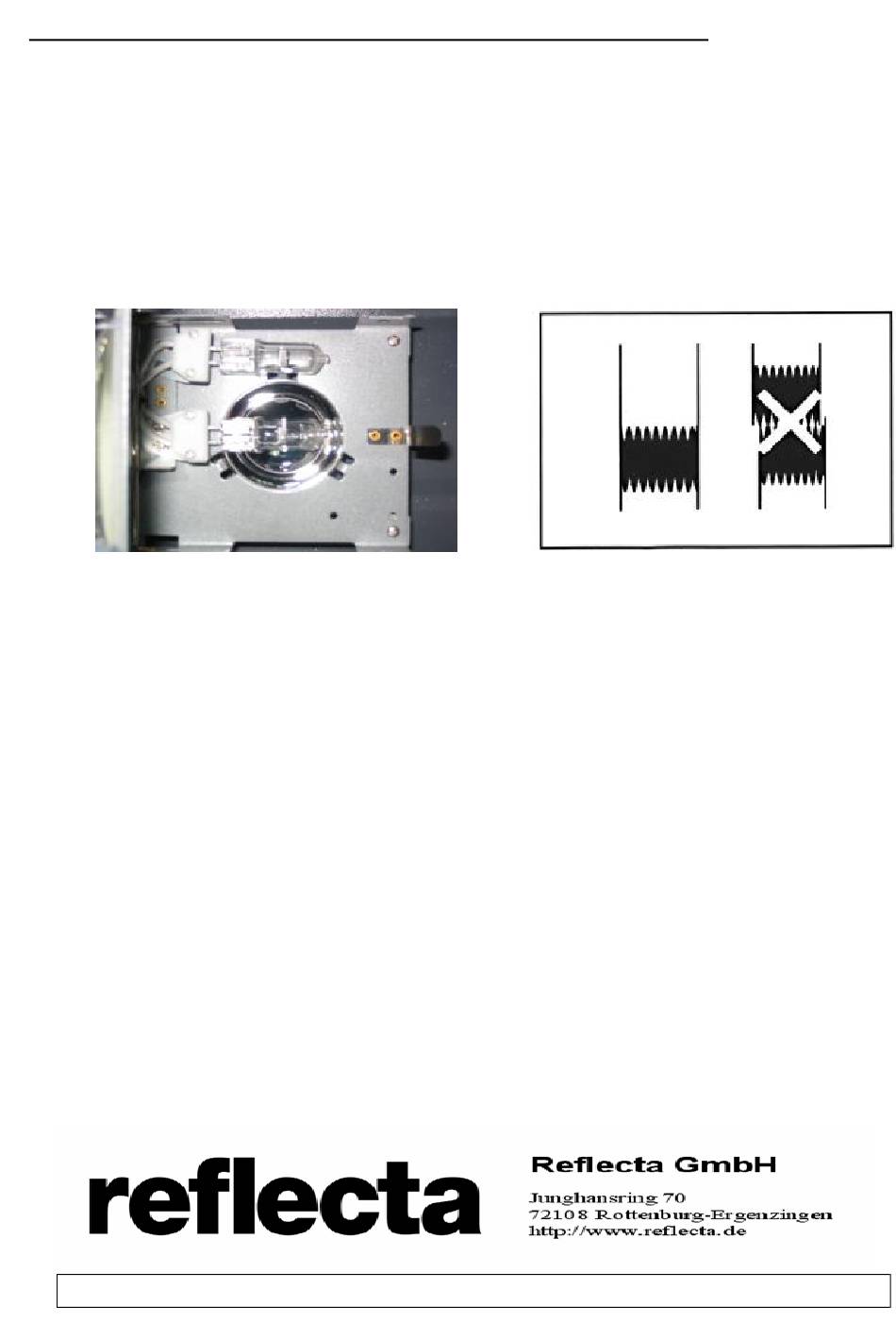

Fig. 5
6
