Fixed frame screen with masking installation and operation manual
The type of motor installed on the product is identified by a label applied on each product showing the CE logo. When unwrapping the product please check the model type indicated on the label in order to
perform the installation and cable connections correctly. Should the power of the motor be different from that of the supply network of the installation place, please contact an electrician to have a current and
Hz transformer installed.
electric cabling must be conformant with applicable IEC standards. IEC norm EN 60335-1 requires that supply network be
fitted with an omnipolar selector switch with contact opening distance of at least 3 mm. For the screen's control use only
the selector switch provided by manufacturer, or equivalent model. The selector switch must be mounted within sight
distance of the product, at a 1.5 - 1.8 m height from the floor.
Correctly performed, state-of-the-art, norm-compliant electrical connections are important to prevent accidents and to
ensure the screen's optimal and unaltered performance over time. Prior to carrying out any operation on electrical parts
ensure that power supply is disconnected
Somfy 230V 50Hz
MOTOR
EU or UK or US
PLUG
Volt: 230V AC
Frequency: ~Hz50
HORIZONTAL
Power: 90W
MASKING
Torque: 6Nm
Speed: 17RpM
Motor
Duty cycle: S2 4min
characteristics
Operating T°: from –20 to +55 °C
Screen ≤130"
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
Volt: 230V AC
Frequency: ~Hz50
HORIZONTAL
Power: 140W
MASKING
Torque: 15Nm
Speed: 17RpM
Motor
Duty cycle: S2 4min
characteristics
Operating T°: from –20 to +55 °C
screen ≥130"
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
Before to do the electric cabling , read carefully the complete instruction of the MCS. Should the power of the motor be different from that of the supply network of the installation place, please contact an
electrician to have a current and Hz transformer installed.
ELECTRICAL CONNECTION: electric cabling must be conformant with applicable IEC standards. IEC norm EN 60335-1 requires that supply network be fitted with an omnipolar
selector switch with contact opening distance of at least 3 mm.
For each motor (e.g. plug switch etc.). In case of need, this device ensures that the power supply is safely and quickly cut off.
Use the wires as described in the figure.
ATTENTION:
This product contains two motors, which must both be wired in the same manner.
Bus cables must be insulated if not used for the push-button command.
WARNING: Correctly performed, state-of-the-art, norm-compliant electrical connections are important to prevent accidents and to ensure the screen's optimal and unaltered
performance over time. Prior to carrying out any operation on electrical parts ensure that power supply is disconnected.
Bus cables (black white orange) must be insulated if not used for the push-button command.
Somfy ILT4 characteristics:
A Power supply: 90 ÷ 225 Vac 50/60 Hz
Protection rating: IP20 (with container intact)
Operating temperature: -0° C . +60° C
Dimensions: 137 x 80 x 40 mm
SOFTWARE:
For remote the screen with ILT4 and serial command (RS232 o RS485) are available the follow software: EventGhost_0.3.7.r1170
(Download: http://www.eventghost.org/downloads/EventGhost_0.3.7.r1462_Setup.exe
(Download package:
Made by Adeo Screen Sp. Z o.o. (Poland) Specifications are subject to change without notice. E&OE
Please verify that you are working with the latest revision of this document before specifying your screen.
Doc: X4R3 – Installation Manual rev1 | 05.03.2018

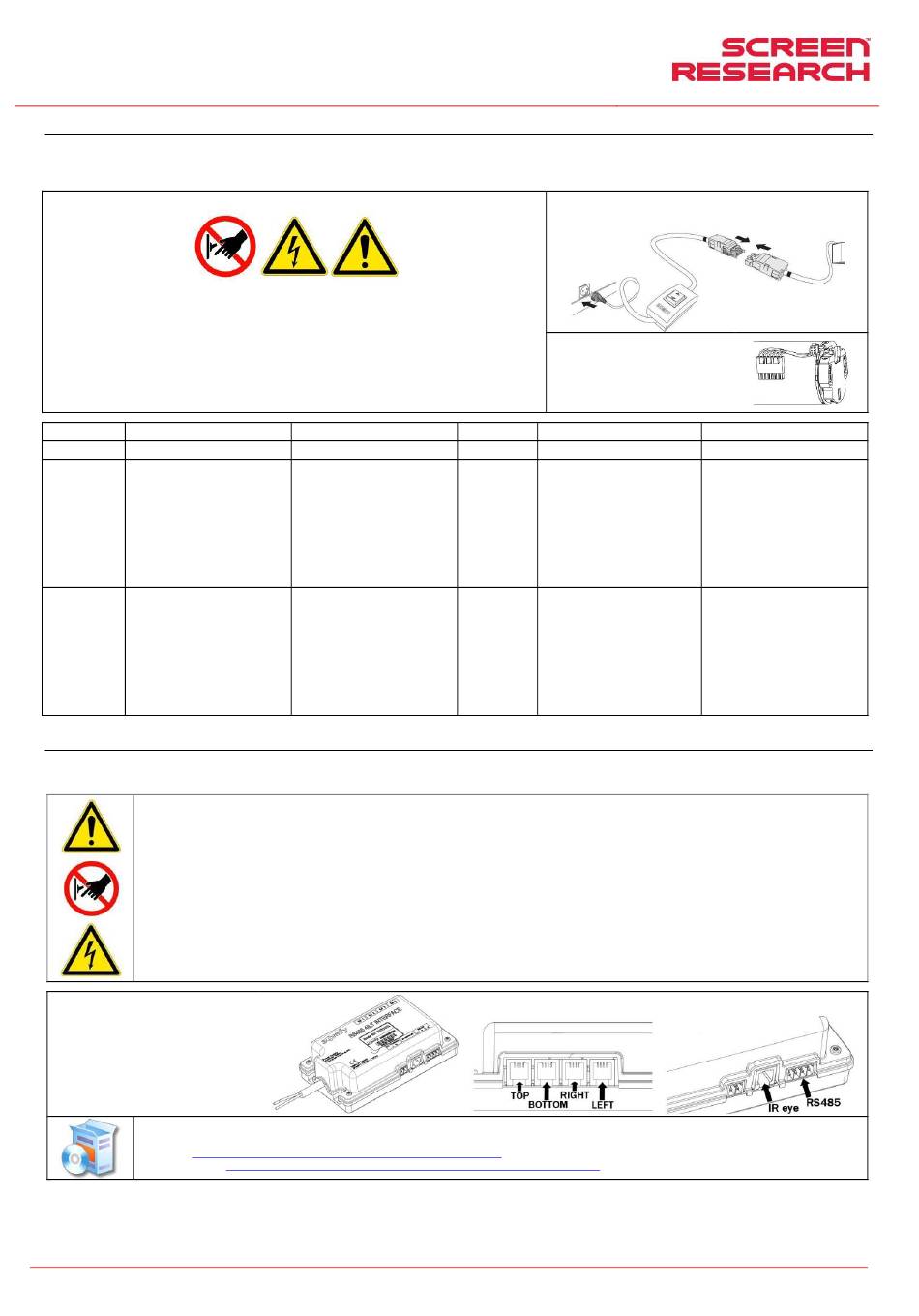

09 MOTOR TYPE IDENTIFICATION –CHARACTERISTICS – ELECTRICAL CONNECTION
ELECTRICAL CONNECTION:
WARNING:
Somfy 120V 60Hz
US
Volt: 120V AC
Frequency: ~Hz60
Power: 110W
Torque: 6Nm
Speed: 38RpM
Duty cycle: S2 4min
Operating T°: from –20 to +55 °C
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
Volt: 120V AC
Frequency: ~Hz60
Power: 210W
Torque: 15Nm
Speed: 38RpM
Duty cycle: S2 4min
Operating T°: from –20 to +55 °C
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
CONNECTION SOMFY ILT4 (options not included)
http://www.screenresearch.com/website/documents/software_current/ILT%20interface.rar
The screens with motorization SOMFY are equipped with cables complete of
the switch for the surface movement and of Plug for connection to the
electricity. The screens and the cables, are included of quick connectors.
The screens with motorization LUTRON are
equipped with quick connectors for
connection to transformers or
management systems LUTRON
Somfy 230V 50Hz
MOTOR
EU or UK or US
PLUG
Volt: 230V AC
Frequency: ~Hz50
VERTICAL
Power: 90W
MASKING
Torque: 6Nm
Speed: 17RpM
Motor
Duty cycle: S2 4min
characteristics
Operating T°: from –20 to +55 °C
Screen ≤170"
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
Volt: 230V AC
Frequency: ~Hz50
VERTICAL
Power: 140W
MASKING
Torque: 15Nm
Speed: 17RpM
Motor
Duty cycle: S2 4min
characteristics
Operating T°: from –20 to +55 °C
screen ≥171"
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
)
)
ENGLISH
Somfy 120V 60Hz
US
Volt: 120V AC
Frequency: ~Hz60
Power: 110W
Torque: 6Nm
Speed: 38RpM
Duty cycle: S2 4min
Operating T°: from –20 to +55 °C
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
Volt: 120V AC
Frequency: ~Hz60
Power: 210W
Torque: 15Nm
Speed: 38RpM
Duty cycle: S2 4min
Operating T°: from –20 to +55 °C
Weighted sound pressure level:
LpA ≤ 70 dB(A)
Motor protection class: IP44
