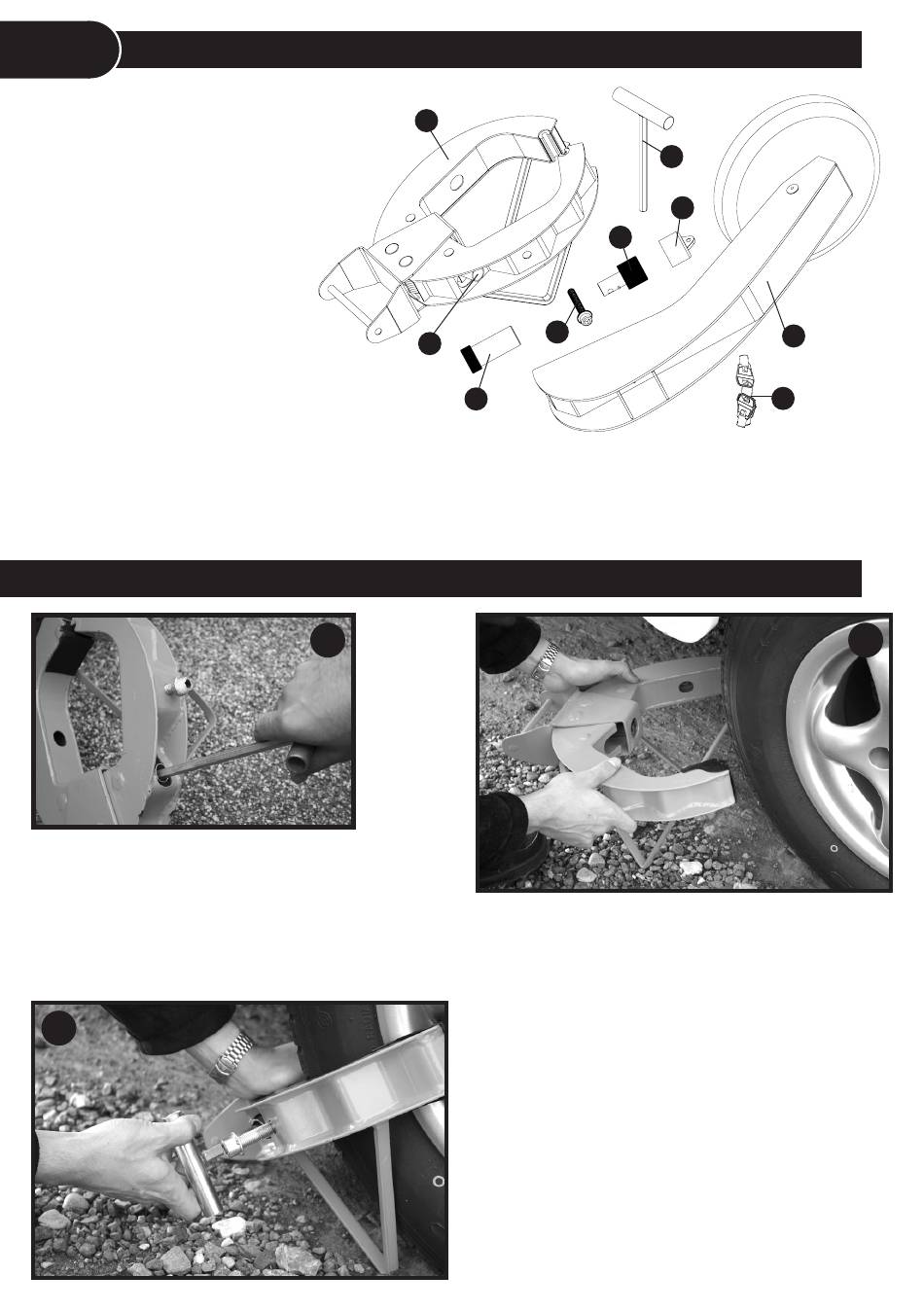

PARTS IDENTIFICATION

1. 'Jaws' Section
2. Wheel Hub Cover Arm
3. Male Lock Portion
4. Female Lock Portion
5. Hex Tool
6. Lock Cap
7. Wheel Hub Arm Hex Bolt
8. 'Jaws' Section Hex Bolt
9. Key (x3)
Please store your keys in a safe place and remember to register your product.
Registration is quick and simple, go to www.purpleline.co.uk/product-registration
Please register within 14 days of purchase. Please retain your original purchase receipt.
INSTALLATION
A. Using the hex tool (5), unscrew the hinge bolt (8) anti-
clockwise to open the 'jaws' (1).
B. Check that the 'jaws' open enough to fit around the tyre
and then fit the 'jaw' section around the wheel.
C
1
8
4
A
NOTE: The tips of the 'jaws' should be fitted into the
wheel as far as possible. A little experimentation will be
required to ensure a secure fit for your application.
C. Once the optimum jaw position has been
established, the jaws need to be closed by using the
hex tool to turn the hinge bolt clockwise. Use the hex
tool to achieve a secure fixing.
TIP: When fitting to alloy wheels it may be prudent to
use some form of padding to protect the wheel from
being scratched.
FPC100 User Manual Page 3 UK
5
6
3
7
2
9
