INSTALLATION --- INSTALLATION
Mansory Wall -- Mur de brique
Concrete --- Ciment
INSTALLATION OF THE CABINET/WALL SLEEVE & TRANSITION CABINET
1. The cabinet/wall sleeve may be positioned in the wall to suit the application subject to the limitations that:

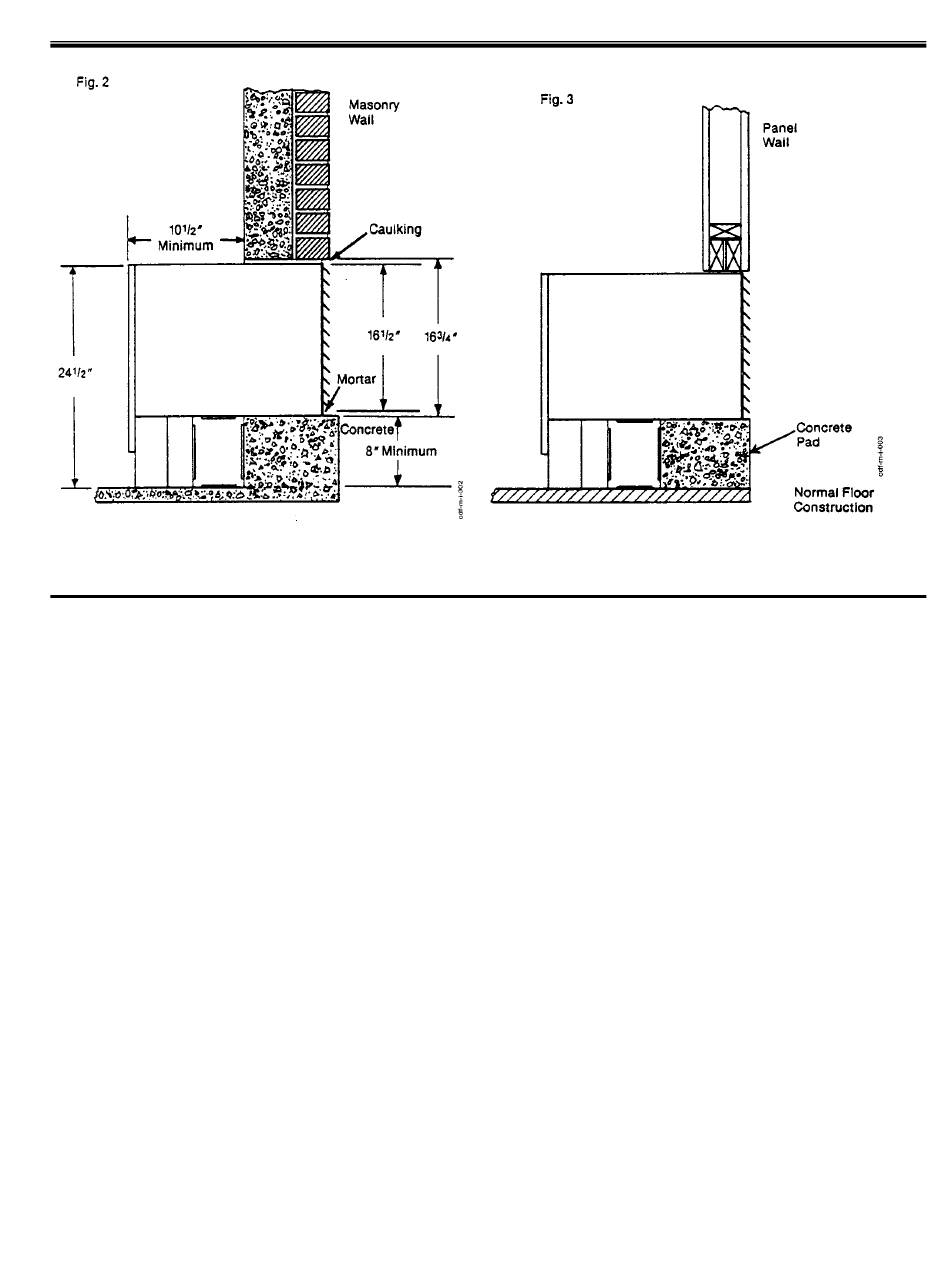

a) The finished wall must be a minimum of 10½" from the front of the cabinet (fig. 2&3).
b) The outdoor louver must be flush or extending beyond the outside wall (no recess). Use a wall sleeve
extension if necessary. Figures 2 and 3 represent typical installations.
2. For best results, the rear 12" of the cabinet should be supported by concrete, regardless of wall construction.
The inside edge of the cabinet must be 8¼" above the finished floor to allow adequate space for the
transition cabinet (fig. 2 & 3). The transition cabinet should be level from left to right.
3. The cabinet/wall sleeve will NOT support the wall above it. Provide necessary lintels to prevent distortion of
the cabinet.
4. Always set the cabinet/wall sleeve in wet concrete or mortar and press firmly into place to get contact
between the concrete and the bottom.
5. All cracks or openings between the cabinet and the wall must be filled with mortar and/or caulked.
A. New Masonry Wall
6. From the architect's drawings, determine the position of each unit and mark the centerline of the cabinet/wall
sleeve. Also, mark the location of the conduit enclosure for the position and size for high and low voltage
wiring (fig. 4 & 5).
7. Run conduits to location for each unit, as established in step 1.
8. Completely finish all concrete work associated with floor and wall (fig. 2 & 3).
9. Provide 12" wide concrete pad under unit.
10. Remove conduit enclosure cover located at right hand side of transition cabinet (fig. 6).
11. Set the cabinet/wall sleeve in ¾" wet concrete – it must be level from side to side, but sloped ¼" overall,
toward the outside, for proper drainage. Press into place.
12. Ensure cabinet/wall sleeve is not distorted during installation and is adequately protected during the
construction period.
Revised April 2009 --- Révisé en Avril 2009
Panel Wall --- Panneau mural
Concrete Pad --- Plateforme cimentée
Minimum --- Minimum
Normal Floor construction --- Construction normale d'un plancher
Caulking --- Calfeutrage
