Position your Inverter and batteries (not included) on a hard, level floor.

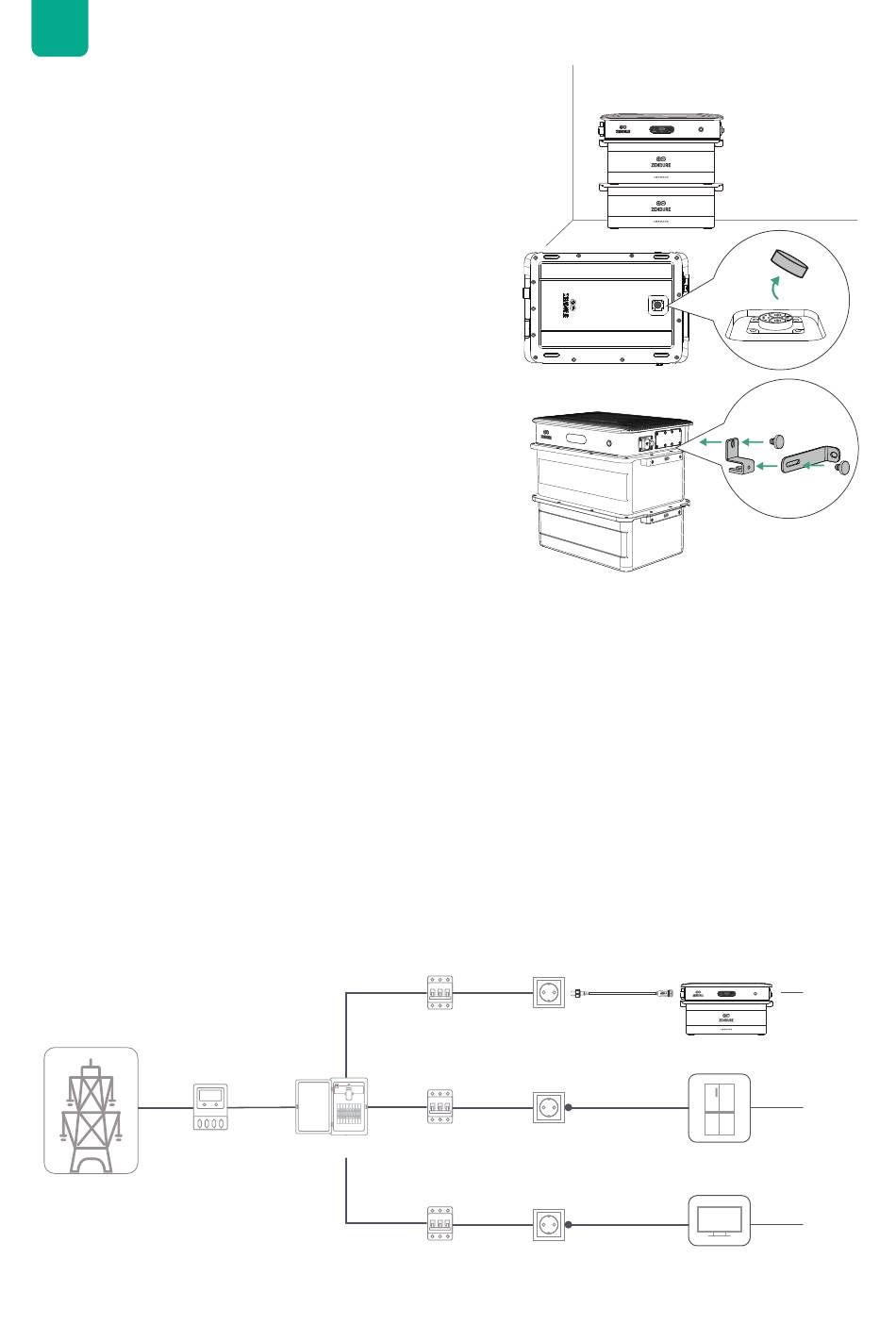

5.2 Assembly Process
5.2.1 Remove the Protective Cover
5.2.2 Connect to the Battery
(1) Place the SolarFlow 2400 AC on Zendure AB3000X Battery.
A single SolarFlow 2400 AC can be connected to up to 6pcs
AB3000X batteries in parallel.
(2) Use the mounting brackets and M4 screws to securely attach
the SolarFlow 2400 AC to the battery pack on both sides.
(3) Use the brackets and expansion screws to firmly fix the
SolarFlow 2400 AC to the wall.
5.2.3 Connecting to the Grid via a Power Socket
You can easily connect the SolarFlow 2400 AC to a standard wall socket. However, please follow these
important safety guidelines to avoid overloads, tripped breakers, or potential hazards:
1. Default Output Limit: 800W
By default, the inverter limits output to 800W to prevent circuit overload.
• If you're unsure whether other appliances share the same circuit, do not exceed 800W output.
• Country-specific limits: France: 900W; Germany, Belgium, Netherlands, Austria, Italy: 800W; Switzerland:
600W;
2. Boosting Output up to 2400W (Peak)
The inverter supports a peak output of up to 2400W. To safely unlock higher power, choose one of the
following installation methods:
(1) Using a Wall Socket
• Hire a licensed electrician to confirm the outlet is on a dedicated circuit with no other devices connected.
• Once verified, you can unlock higher output levels via the app (up to 2400W).
(2) Using a Circuit Breaker
• For maximum safety and professional setup, we strongly recommend installation via a circuit breaker.
• A qualified electrician should follow the detailed instructions in User Manual section 5.2.5.
Note: These guidelines apply to power output only. Charging input does not pose additional safety concerns.
Electric Meter
Grid
Circuit Breaker
Circuit Breaker
Distribution Box
Circuit Breaker
8
Phase A
Phase B
Phase C
