Step 2
å

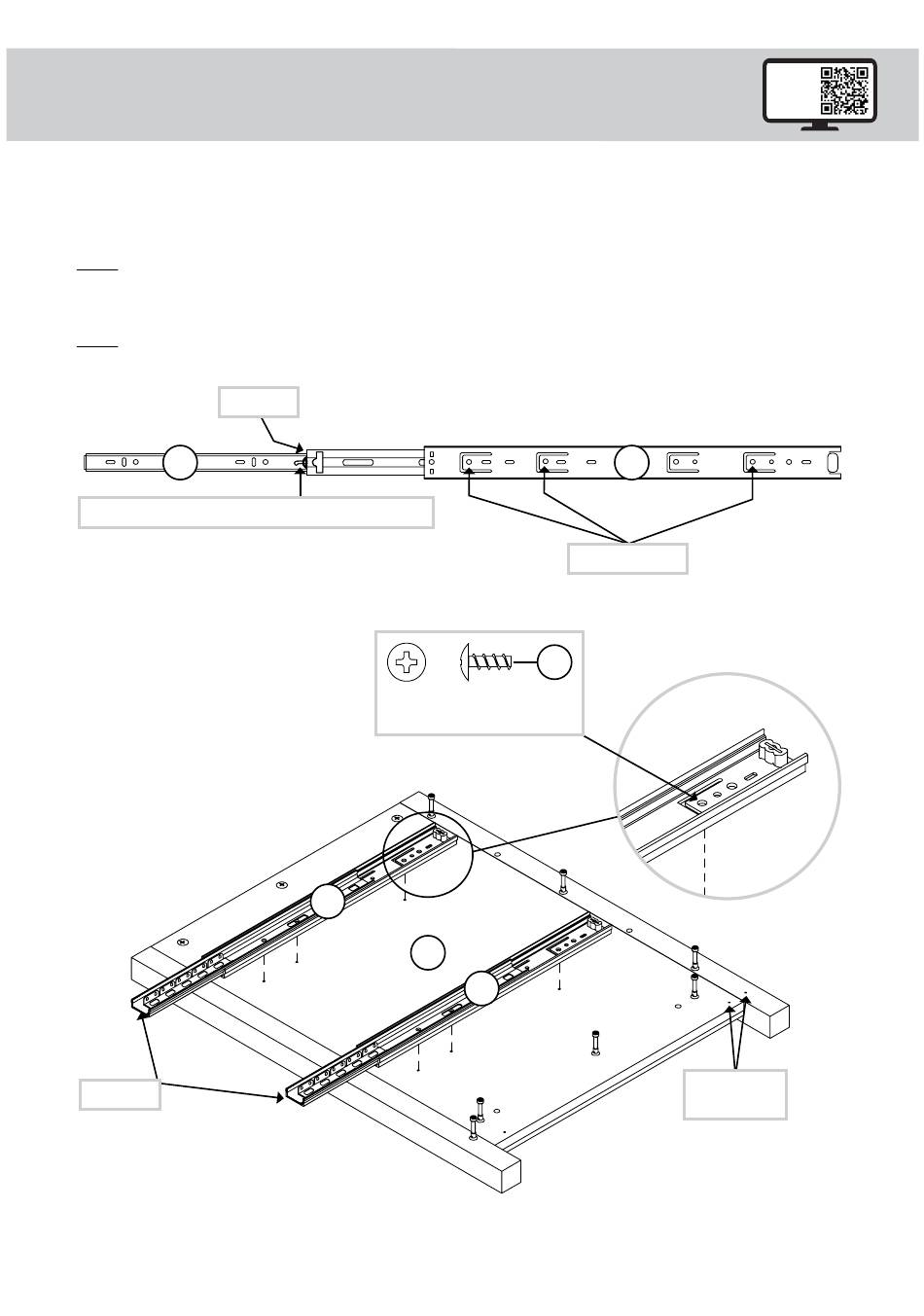

Separate the EXTENSION SLIDES (2) from the EXTENSION RAILS (1) as shown in the upper diagram
below. Be prepared, the parts are greasy.
å
Fasten two EXTENSION RAILS (1) to the LEFT END (A). Use six 3/8" PAN HEAD SCREWS (25).
å
NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged diagram. Then,
slide the inner cartridge of the EXTENSION RAIL in to find the other holes that line up with the holes
in the END. Turn a SCREW into each hole.
å
NOTE: The EXTENSION SLIDES will be used later for the DRAWERS.
2
Push the black lever and pull the SLIDE from the RAIL.
Open end
Page 8
Open end
1
www.sauder.com/service
Use these holes.
25
3/8" PAN HEAD SCREW
(6 used in this step)
A
1
7
1
These holes
must be here.
429514
